Kingflex
Kingflex

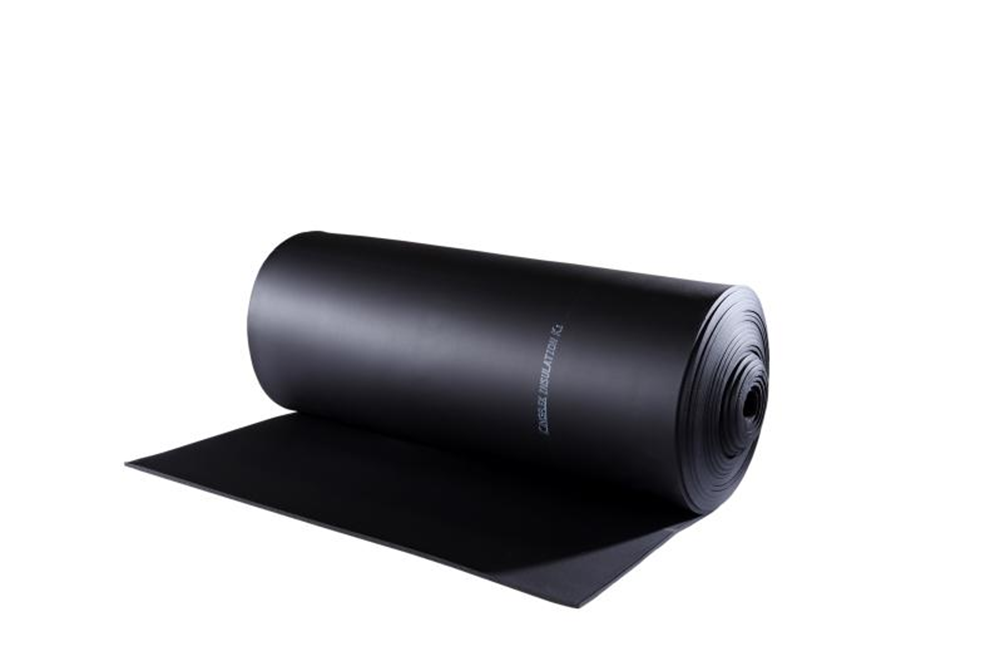

Alkadiene cryogenic thermal insulation materials in cryogenic environment, has a lower coefficient of thermal conductivity, lower density and good elasticity, no crack, effective insulation, good flame-retardant performance, good moisture resistance, durable and long lasting.
| Product Dimension | |||
|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll |
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |

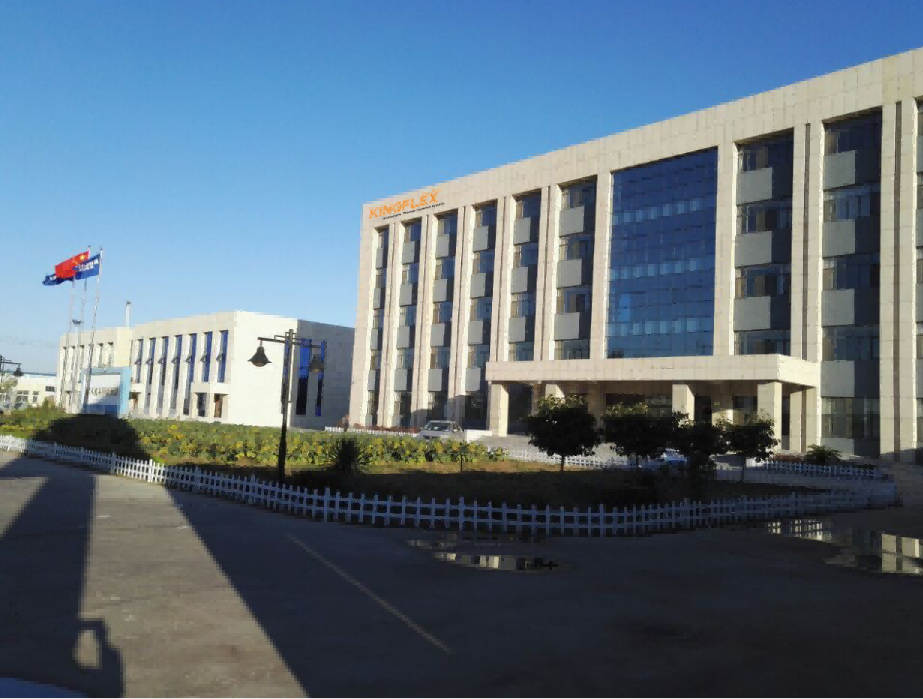

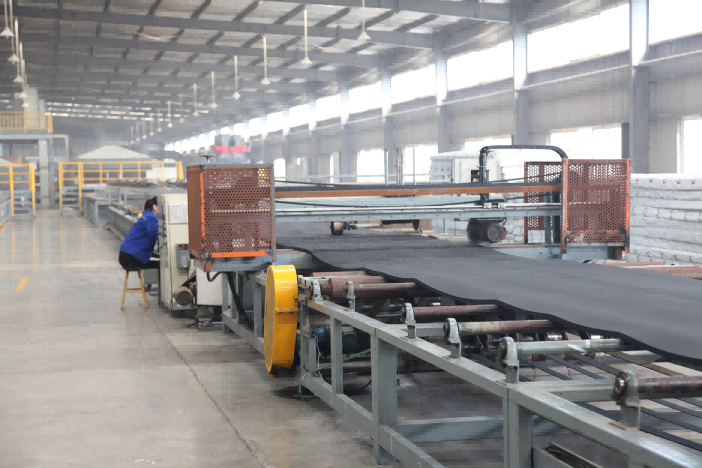

Established in 2004, the manufacturing enterprise has committed to delivering energy conservation solutions that enhance life comfort and drive business profitability. Equipped with 5 large automatic assembly lines and achieving an annual production capacity of over 600,000 cubic meters, the plant is recognized as a designated production facility of thermal insulation materials for the National energy department, Ministry of electric power, and Ministry of chemical industry.
| Main Property | Base material | Test Method / Standard | |
|---|---|---|---|
| ULT Series | LT Series | ||
| Thermal Conductivity | -100°C: 0.028 -165°C: 0.021 |
0°C: 0.033 -50°C: 0.028 |
ASTM C177 |
| Density Range | 60-80Kg/m³ | 40-60Kg/m³ | ASTM D1622 |
| Recommend Operation Temperature | -200°C to 125°C | -50°C to 105°C | — |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10⁻¹¹ g/(m·s·Pa) | ASTM E96 |
| Wet resistance Factor (μ) | NA | >10000 | EN12086 EN13469 |
| Water Vapor Permeability Coefficient | NA | 0.0039g/h.m² (25mm thickness) |
ASTM E96 |
| PH | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength (MPa) | -100°C: 0.30 -165°C: 0.25 |
0°C: 0.15 -50°C: 0.218 |
ASTM D1623 |
| Compressive Strength (MPa) | -100°C: ≤0.3 | -40°C: ≤0.16 | ASTM D1621 |
1. What are the key properties of Alkadiene cryogenic thermal insulation materials?
They feature a lower coefficient of thermal conductivity, lower density, outstanding elasticity, excellent crack resistance, efficient insulation, exceptional flame-retardant performance, high moisture resistance, and long-lasting durability.
2. What are the operating temperature ranges for the ULT and LT series?
The ULT series is designed for ultra-low temperature requirements, covering a range from -200°C to 125°C. The LT series is suitable for low-temperature applications from -50°C to 105°C.
3. In which industrial applications are these insulation materials commonly used?
They are widely applied in coal chemical MOT, low-temperature storage tanks, FPSO unloading systems, industrial gas and agricultural chemical facilities, platform pipes, gas stations, ethylene pipes, LNG systems, and nitrogen plants.
4. What dimensions are available for these insulation rolls?
Standard dimensions include 3/4" (20mm) thickness sizing 10m x 1m (10 ㎡/Roll) and 1" (25mm) thickness sizing 8m x 1m (8 ㎡/Roll).
5. How does the insulation material perform in terms of moisture prevention?
The LT series maintains high wet resistance with a factor of >10000 and a low water vapor permeability coefficient of 0.0039g/h.m² (under 25mm thickness), ensuring stable thermal performance in humid conditions.
