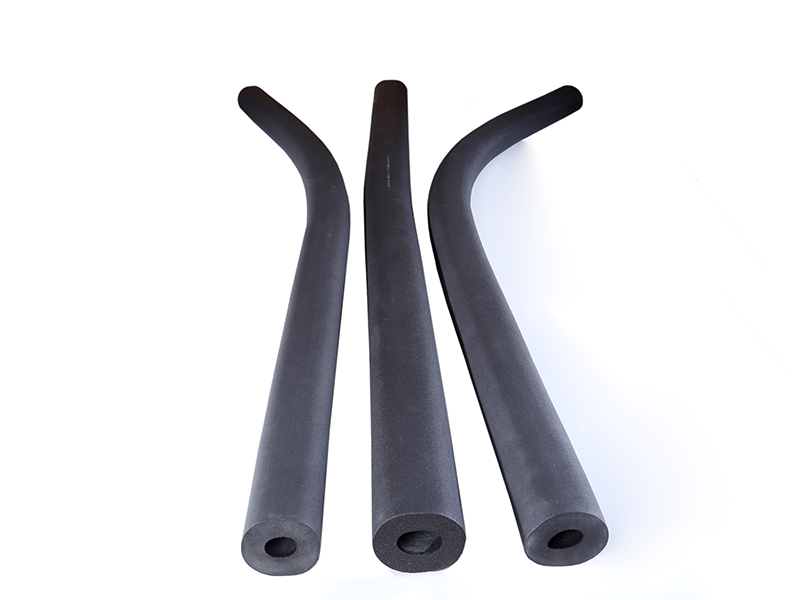

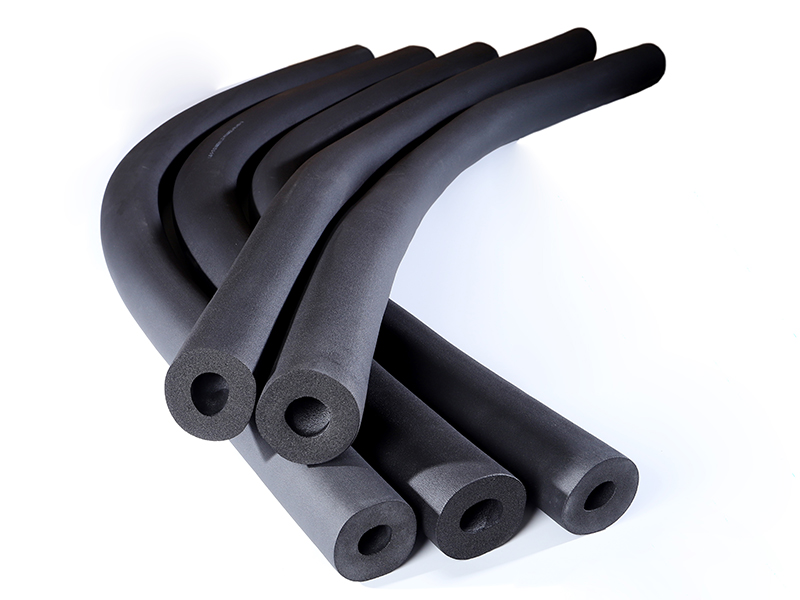

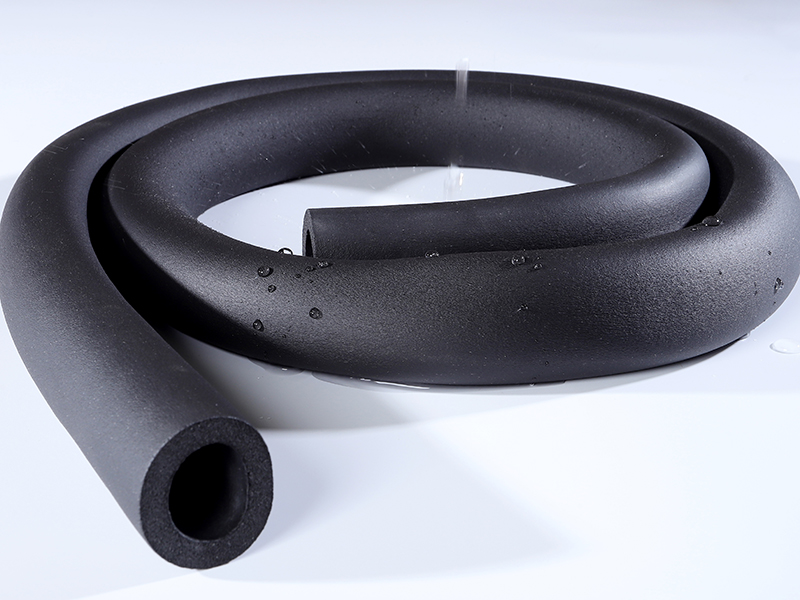

The expanded closed-cell structure of the LT Insulation Tube makes it an efficient insulation option. It is manufactured without the use of CFCs, HFCs, or HCFCs, ensuring an environmentally safe formulation.
Additionally, the LT Insulation Tube can be manufactured with special antimicrobial product protection for added defense against mold development on the insulation surface.
| LT Tube Standard Size | ||||||
|---|---|---|---|---|---|---|
| Steel Pipes | Pipe Fitment | 25mm Insulation Thickness | ||||
| Nominal Pipe (inch) | Nominal (DN) | Outside (mm) | Pipe Max Outside (mm) | Inner Min/Max (mm) | Code | m / Carton |
| 3/4 | 10 | 17.2 | 18 | 19.5 - 21 | ULT 25X018 | 40 |
| 1/2 | 15 | 21.3 | 22 | 23.5 - 25 | ULT 25X022 | 40 |
| 3/4 | 20 | 26.9 | 28 | 29.5 - 31.5 | ULT 25X028 | 36 |
| 1 | 25 | 33.7 | 35 | 36.5 - 38.5 | ULT 25X035 | 30 |
| 1 1/4 | 32 | 42.4 | 42.4 | 44 - 46 | ULT 25X042 | 24 |
| 1 1/2 | 40 | 48.3 | 48.3 | 50 - 52 | ULT 25X048 | 20 |
| 2 | 50 | 60.3 | 60.3 | 62 - 64 | ULT 25X060 | 18 |
| 2 1/2 | 65 | 76.1 | 76.1 | 78 - 80 | ULT 25X076 | 12 |
| 3 | 80 | 88.9 | 89 | 91 - 94 | ULT 25X089 | 12 |
LT Insulation Tube is designed for insulation of pipes, tanks, and vessels (including elbows, flanges, etc.) in:
This product is NOT recommended for:
It is manufactured entirely without the use of CFCs, HFCs, or HCFCs. Additionally, it is formaldehyde-free, low in VOCs, fiber-free, and dust-free, promoting cleaner air quality and safer handling.
Yes, its closed-cell structure naturally resists mold and mildew. For enhanced protection, it can also be customized with specific antimicrobial product defense.
The LT Insulation Tube is engineered to perform reliably in extreme low-temperature environments, suitable for temperatures down to -180˚C, including LNG installations.
No, it is not recommended for application on process pipelines or equipment that carry liquid oxygen.
It should not be applied to gaseous oxygen lines or equipment that operate above a pressure of 1.5MPa (218 psi) or above a temperature of +60˚C (+140˚F).
