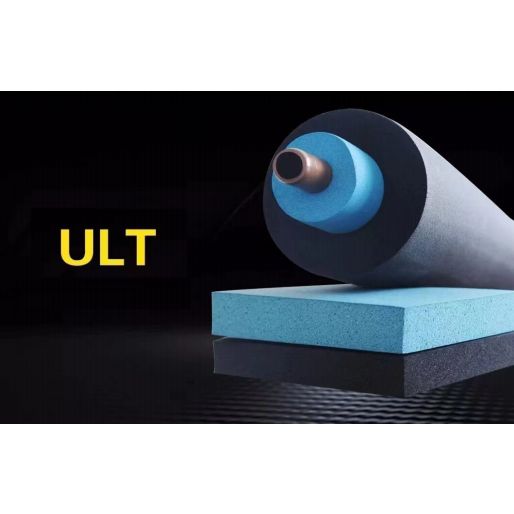

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import and export pipelines and process of facilities.
Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃
Reduces the risk of crack development and propagation
Low thermal conductivity
Low glass transition temperature
The flexible ULT insulation system does not need to install a moisture barrier. Due to the unique closed cell structure and polymer blend formulation, LT low temperature elastomeric materials are highly resistant to water vapor permeation. This foamed material provides continuous resistance to moisture penetration throughout the thickness of the product. This feature of the product greatly extends the life of the entire cold insulation system and significantly reduces the risk of corrosion of the pipes under the insulation.
ULT Technical Data
Property
Unit
Value
Temperature range
°C
(-200 - +110)
Density range
Kg/m³
60-80Kg/m³
Thermal Conductivity
W/(m.k)
≤0.028 (-100°C)
≤0.021 (-165°C)
Fungi resistance
-
Good
Ozone resistance
-
Good
Resistance to U.V. and weather
-
Good
Frequently Asked Questions
What is the operating temperature range of this flexible ULT insulation system?
The system maintains its flexibility at extremely low temperatures down to -200℃ and is suitable for operation within a temperature range up to +125℃ (with Technical Data showing a temperature range from -200°C to +110°C).
Why does this ULT insulation system not require a moisture barrier?
Thanks to its unique closed-cell structure and specialized polymer blend formulation, the low-temperature elastomeric material is highly resistant to water vapor permeation. It provides continuous moisture penetration resistance throughout its entire thickness.
How does the flexibility of the material benefit industrial applications?
Maintaining flexibility at ultra-low temperatures significantly reduces the risk of crack development and propagation, ensuring the structural integrity of the insulation layer.
What are the thermal conductivity properties of the material?
The material offers low thermal conductivity, measuring ≤0.028 W/(m.k) at -100°C and ≤0.021 W/(m.k) at -165°C, ensuring optimal energy conservation.
How does this insulation system prevent under-insulation corrosion?
By providing constant and continuous resistance to moisture penetration, the system prevents water accumulation on the pipe surface, thereby significantly reducing the risk of corrosion of the pipes under the insulation.
What is the density range and environmental resistance of this material?
The material has a density range of 60-80 Kg/m³ and demonstrates good resistance to fungi, ozone, U.V., and weathering.
