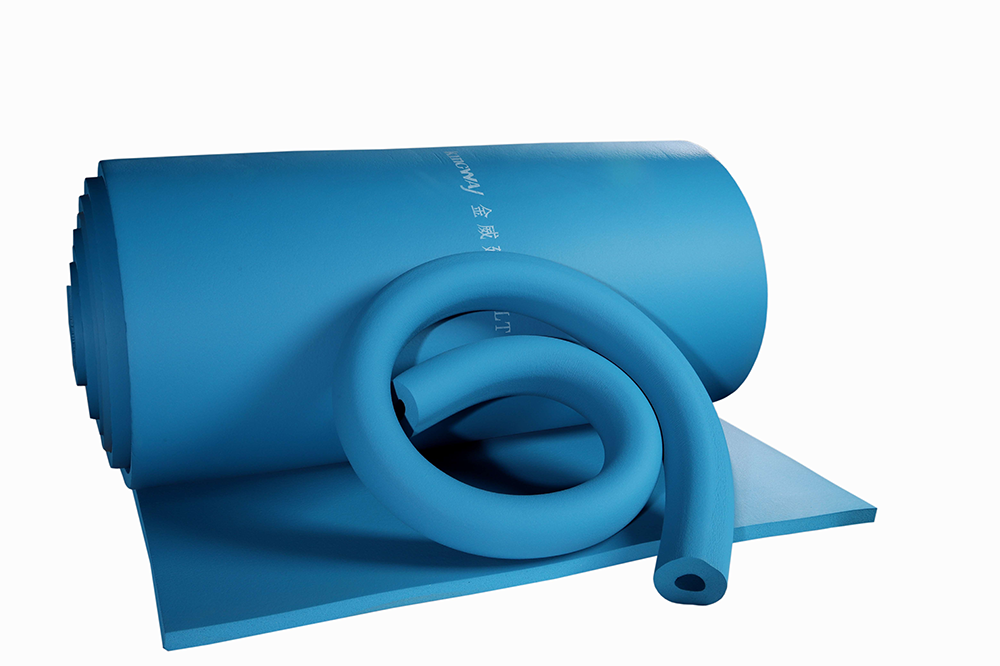

Our flexible ultra low temperature adiabatic system has the inherent characteristics of impact resistance. Its cryogenic elastomer material can absorb the impact and vibration energy caused by external machinery to effectively protect the system structure.
| Thickness | Size (L * W) | ㎡ / Roll | |
|---|---|---|---|
| Inches | mm | ||
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |
Our ULT insulation is widely suitable for low temperature storage tanks, industrial gas and agricultural chemical production plants, platform pipes, gas stations, nitrogen plants, and similar demanding applications.
| Property | Base Material | Test Method | |
|---|---|---|---|
| ULT Grade | LT Grade | ||
| Thermal Conductivity | -100°C, 0.028 -165°C, 0.021 |
0°C, 0.033 -50°C, 0.028 |
ASTM C177 |
| Density Range | 60-80 Kg/m³ | 40-60 Kg/m³ | ASTM D1622 |
| Recommend Operation Temp. | -200°C to 125°C | -50°C to 105°C | - |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10g(m.m.Pa) | ASTM E96 |
| Wet resistance Factor (μ) | NA | >10000 | EN12086 / EN13469 |
| Water Vapor Permeability | NA | 0.0039g/h.m² (25mm) | ASTM E96 |
| PH Value | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength (Mpa) | -100°C, 0.30 -165°C, 0.25 |
0°C, 0.15 -50°C, 0.218 |
ASTM D1623 |
| Compressive Strength (Mpa) | -100°C, ≤0.3 | -40°C, ≤0.16 | ASTM D1621 |
Our ULT (Ultra-Low Temperature) insulation is recommended for extreme environments ranging from -200°C to 125°C, making it suitable for demanding cryogenic applications.
The insulation system is engineered with a cryogenic elastomer base material that inherently absorbs impact and vibration energy from external machinery, protecting the underlying pipe or system structures.
Both our ULT and LT insulation grades maintain a closed cell percentage of over 95%, which ensures superior thermal efficiency and excellent prevention of moisture penetration.
It is designed primarily for low temperature storage tanks, industrial gas processes, chemical plants, offshore platform piping, gas stations, and nitrogen generation systems.
The rolls are available in standard thicknesses of 3/4" (20mm) and 1" (25mm), with corresponding dimensions of 10m x 1m and 8m x 1m respectively.
