Wholesale Rubber Foam Insulation For the Cryogenic Systems Suppliers, Pricelist
Wholesale Rubber Foam Insulation For the Cryogenic Systems Suppliers, Pricelist
1 / 2
Wholesale Rubber Foam Insulation For the Cryogenic Systems Suppliers, Pricelist
Wholesale Rubber Foam Insulation For the Cryogenic Systems Suppliers, Pricelist

Wholesale Rubber Foam Insulation For the Cryogenic Systems Suppliers, Pricelist

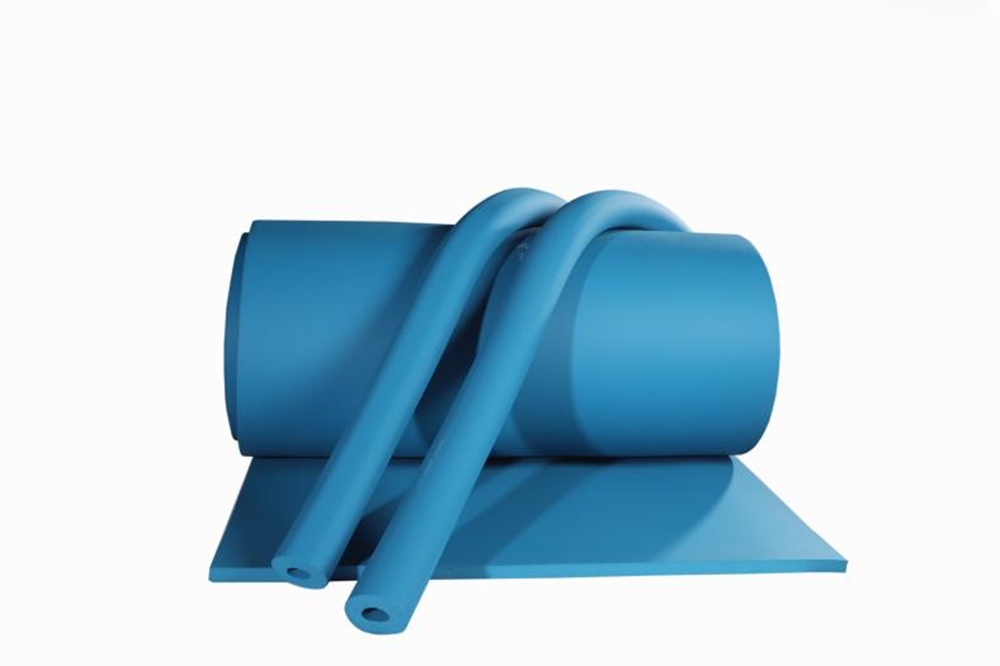

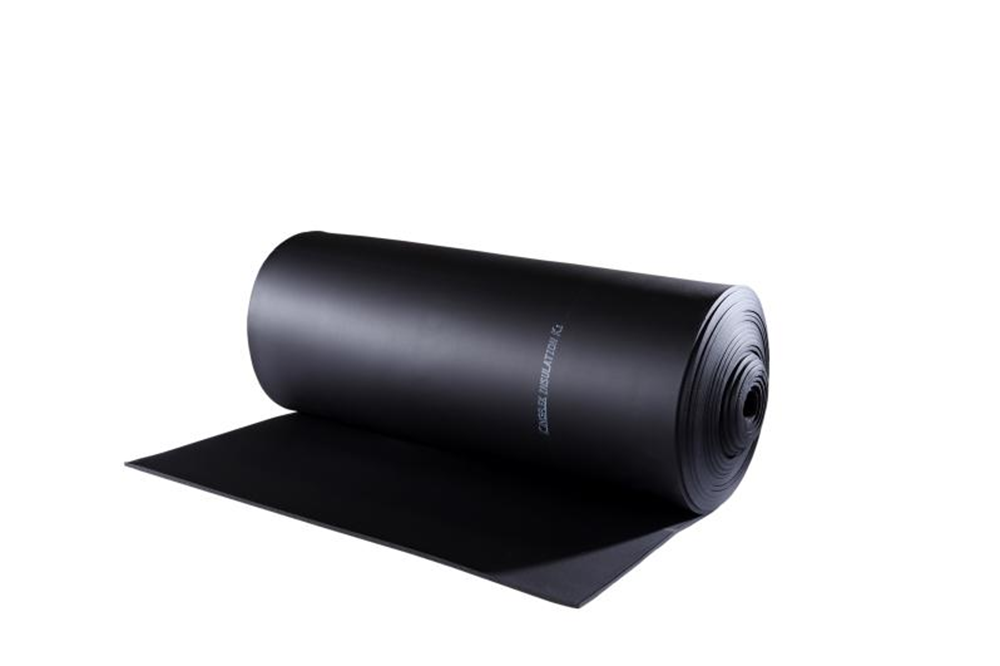

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import and export pipelines and process areas of liquefied natural gas facilities. It is part of Kingflex Cryogenic multi-layer configuration, providing low temperature flexibility to the system.
Send Inquiry

Product Description

Adiabatic System Material Detail
Cryogenic Elastomer Material Applications
Thermal Insulation Structure
Low Temperature System Testing
Adiabatic System Processing
Insulation Material Performance
Elastomer System Structure
Industrial Low Temperature Insulation
Adiabatic Protection Layer Detail

The flexible ultra low temperature adiabatic system has the inherent characteristics of impact resistance, and its cryogenic elastomer material can absorb the impact and vibration energy caused by the external machine to protect the system structure.

Adiabatic System Vibration Test
Low Temperature Elastomer Details
Main Property Base material Standard / Test Method
ULT LT
Thermal Conductivity

-100°C, 0.028

-165°C, 0.021

0°C, 0.033

-50°C, 0.028

 ASTM C177
Density Range 60-80Kg/m³ 40-60Kg/m³ ASTM D1622
Recommend Operation Temperature -200°C to 125°C -50°C to 105°C —
Percentage Of Close Areas >95% >95% ASTM D2856
Moisture Performance Factor NA <1.96x10g(m.m.Pa) ASTM E 96
Wet resistance Factor (μ) NA >10000 EN12086 / EN13469
Water Vapor Permeability Coefficient NA

0.0039g/h.m²

(25mm thickness)

 ASTM E 96
PH ≥8.0 ≥8.0 ASTM C871
Tensile Strength Mpa

-100°C, 0.30

-165°C, 0.25

0°C, 0.15

-50°C, 0.218

 ASTM D1623
Compressive Strength Mpa -100°C, ≤0.3 -40°C, ≤0.16 ASTM D1621
  • Insulation that maintains its flexibility at very low temperatures down to -200℃ to + 125 ℃.
  • Protects against mechanical impact and shock with a highly resilient system structure.
  • Features a low glass transition temperature for enhanced reliability in extreme environments.
Thermal Insulation Properties Chart

Frequently Asked Questions (FAQ)

What is the recommended operating temperature range for these adiabatic systems?
The ULT system is designed to operate under extreme conditions ranging from -200°C to 125°C, while the LT system is recommended for temperatures between -50°C and 105°C.
How does the material protect against mechanical impact?
The cryogenic elastomer material acts as an energy absorber, dampening mechanical shock and vibrational stress caused by external machinery, thereby preventing structural fatigue and damage.
What are the thermal conductivity levels of the ULT and LT materials?
The ULT base material features a thermal conductivity of 0.028 W/(m·K) at -100°C and 0.021 W/(m·K) at -165°C. The LT base material has a thermal conductivity of 0.033 W/(m·K) at 0°C and 0.028 W/(m·K) at -50°C.
What is the closed-cell percentage of these insulation materials?
Both ULT and LT insulation systems maintain a closed-cell ratio exceeding 95% (tested under ASTM D2856), providing excellent barrier performance against moisture and gas penetration.
Does the system prevent corrosion under insulation (CUI)?
Yes, with a pH value of ≥8.0 (tested under ASTM C871) and low moisture permeability, the material actively prevents corrosion under insulation by minimizing acidic build-up and water intrusion.

Related Products

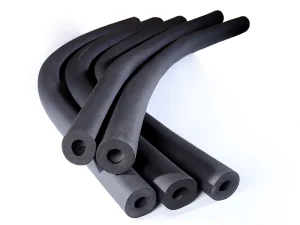

China Low temperature thermal insulation tubing Manufacturer, Manufacturers
