Kingflex
Kingflex
Low temperature storage tank; industrial gas and agricultural chemical production plants; platform pipe; gas station; nitrogen plant...
| Property | Base material | Standard / Test Method | |
|---|---|---|---|
| Kingflex ULT | Kingflex LT | ||
| Thermal Conductivity | -100°C, 0.028 -165°C, 0.021 |
0°C, 0.033 -50°C, 0.028 |
ASTM C177 |
| Density Range | 60-80Kg/m³ | 40-60Kg/m³ | ASTM D1622 |
| Recommend Operation Temp. | -200°C to 125°C | -50°C to 105°C | - |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10g(m.m.Pa) | ASTM E 96 |
| Wet resistance Factor μ | NA | >10000 | EN12086 / EN13469 |
| Water Vapor Permeability | NA | 0.0039g/h.m² (25mm thickness) |
ASTM E 96 |
| PH | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength Mpa | -100°C, 0.30 -165°C, 0.25 |
0°C, 0.15 -50°C, 0.218 |
ASTM D1623 |
| Compressive Strength Mpa | -100°C, ≤0.3 | -40°C, ≤0.16 | ASTM D1621 |
| Inches | mm | Size (L * W) | ㎡ / Roll |
|---|---|---|---|
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |

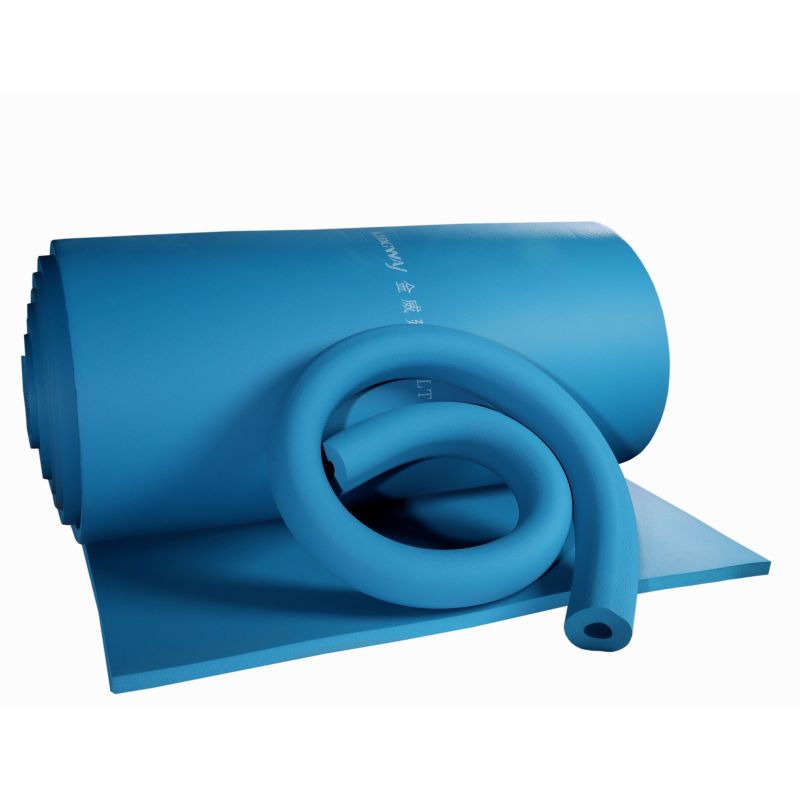

Kingflex ULT is specifically engineered for ultra-low temperature applications, operating safely and effectively within a temperature range of -200°C to 125°C.
The material features a closed-cell structure with a percentage of close areas exceeding 95%. This design delivers a high wet resistance factor and extremely low water vapor permeability, preventing moisture intrusion.
Yes, by maintaining an exceptionally high moisture resistance and closed-cell density, the insulation effectively prevents water and moisture from reaching the pipe surface, thereby reducing the risk of corrosion under insulation.
Yes, the material is designed to protect systems against mechanical impacts and physical shocks while remaining highly flexible even at extreme cryogenic temperatures down to -200°C.
Standard dimensions include a 3/4" (20mm) thickness available in 10m x 1m rolls (10 ㎡/Roll) and a 1" (25mm) thickness available in 8m x 1m rolls (8 ㎡/Roll).
It is primarily applied in industrial gas and agricultural chemical production plants, low-temperature storage tanks, platform piping, nitrogen plants, and gas stations.
