China Flexible Foam Rubber Insulation Pipe Suppliers, Pricelist

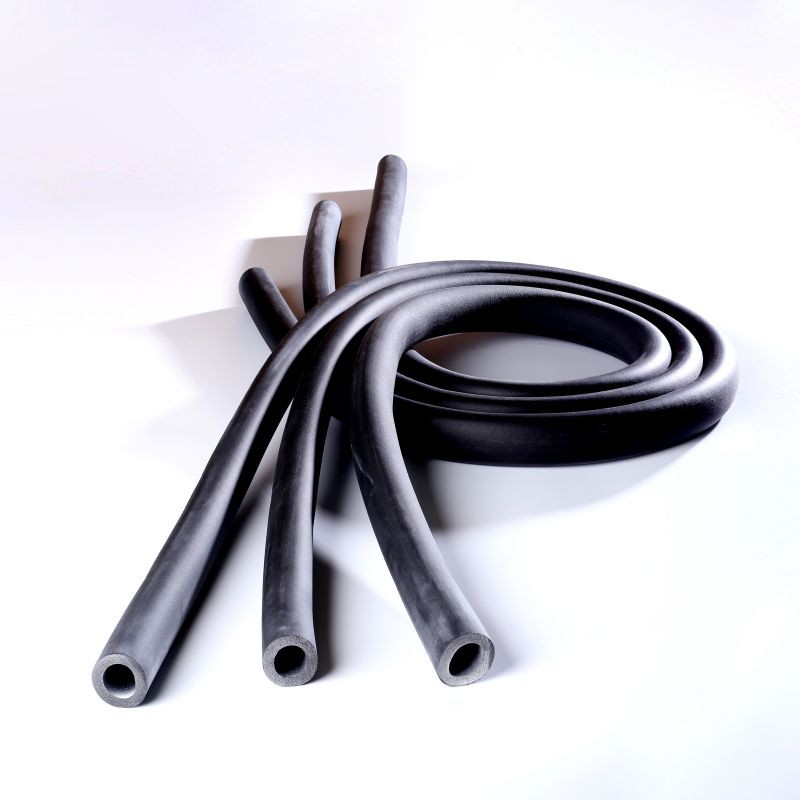

Flexible Foam Rubber Insulation Pipe is designed for the insulation of large surfaces, ideal for the insulation of pipes of large diameters. By reducing the number of sections required they simplify installation, saving on time and labor costs. Facing: Pipe can be covered with aluminum foil and adhesive paper. NBR pipe insulation is a flexible, elastomeric thermal insulation with smooth skin on the outer surface. The expanded closed-cell structure of the synthetic nitrile rubber makes it an efficient thermal insulator for hot water and air conditioning pipe. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Rubber foam insulation material
Rubber foam insulation material close up
Rubber foam insulation sheet
Rubber foam insulation production
  • Low conductivity factor
  • Good fire-blocking
  • Closed pore foaming, good damp-proof property
  • Good pliability
  • Beautiful appearance, easy to install
  • Safe (neither stimulate the skin nor harm health), Excellent performance of acid-resisting and alkali-resisting.
High performance insulation material

The rubber foam products are produced by imported high-end technology and automatic continuous equipment. A rubber foam insulation material with excellent performance has been developed through in-depth research. The major materials used are NBR/PVC.

Insulation testing
Production details
Quality inspection
Product packaging
Warehouse storage
Finished insulation rolls
Testing process
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Frequently Asked Questions
What are the primary advantages of this rubber foam insulation?
It offers a low conductivity factor, excellent fire-blocking, high pliability, superb moisture resistance via closed pore foaming, a clean aesthetic appearance, easy installation, and strong resistance to acids and alkalis.
What materials are used to manufacture these insulation products?
The insulation material is professionally formulated and produced using a high-quality blend of NBR (Nitrile Butadiene Rubber) and PVC (Polyvinyl Chloride).
What is the operating temperature range for the rubber foam?
The material is designed to operate safely within a temperature range of -50°C to 110°C, complying with standard GB/T 17794-1999.
How does this product perform in fire safety tests?
It achieves Class 0 and Class 1 fire ratings according to BS 476 Part 6 & 7 testing methods, and has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
Does this insulation resist weathering and environmental exposure?
Yes, the technical data shows it has good resistance to ultraviolet (U.V.) light, ozone, weathering, and fungi growth, making it highly durable under various environmental conditions.
