Kingflex
Kingflex

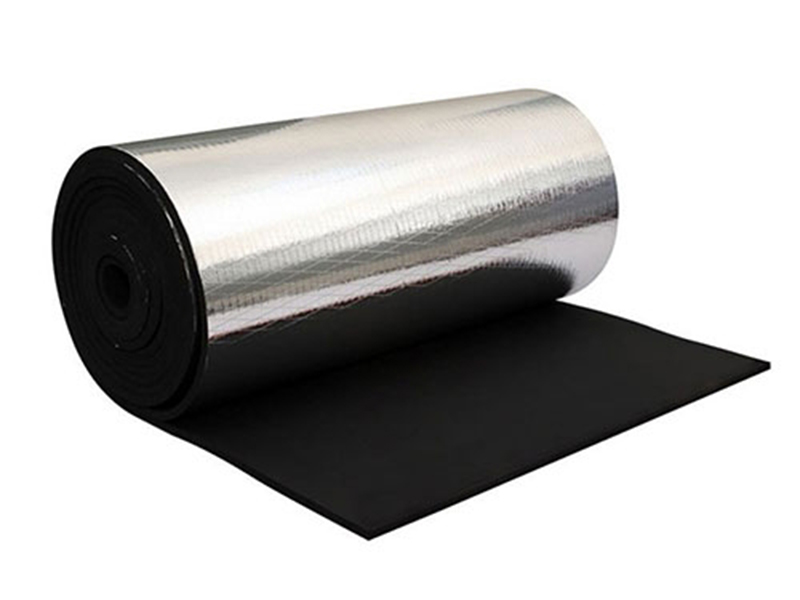

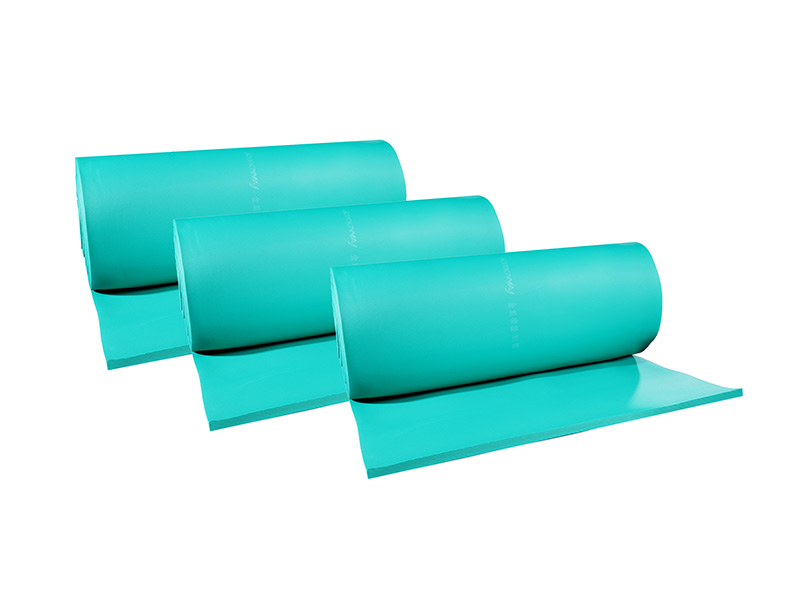

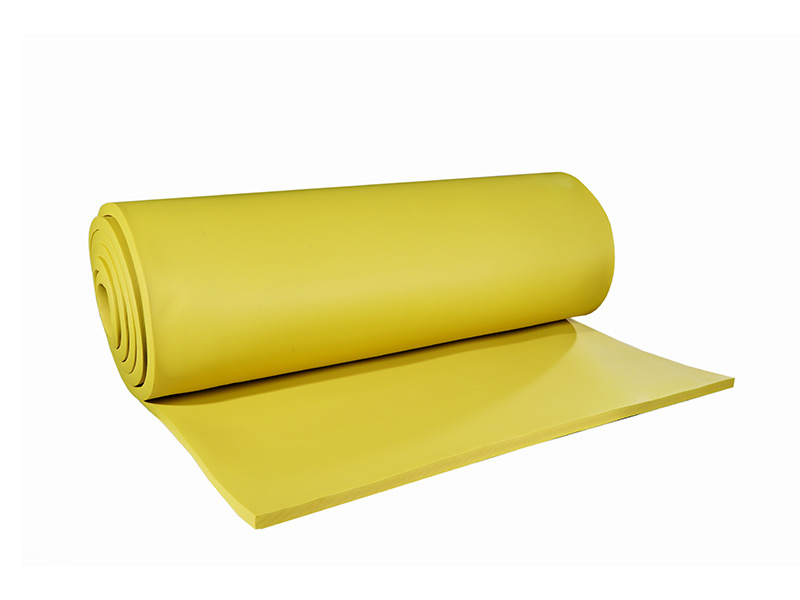

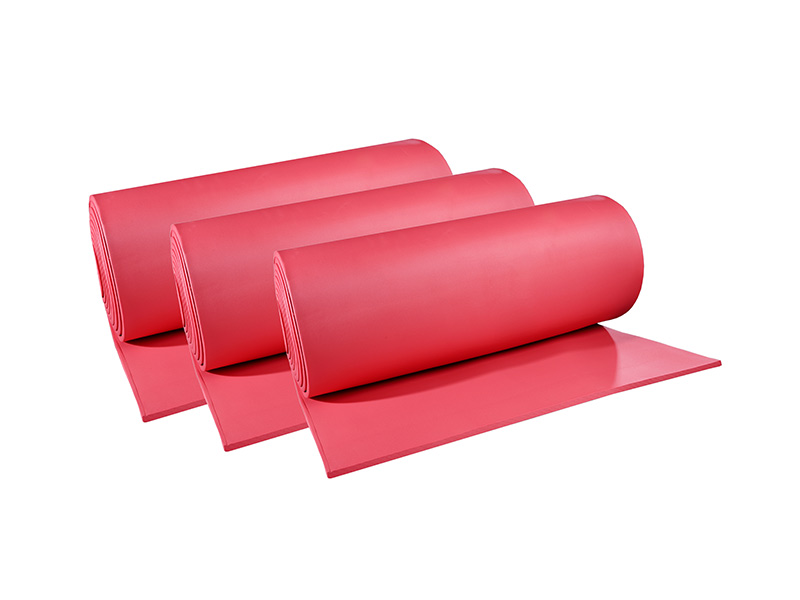

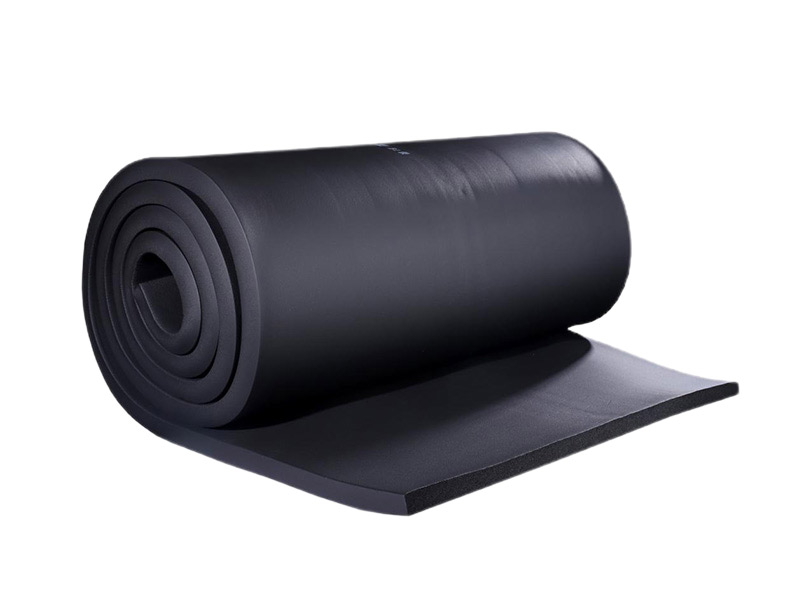

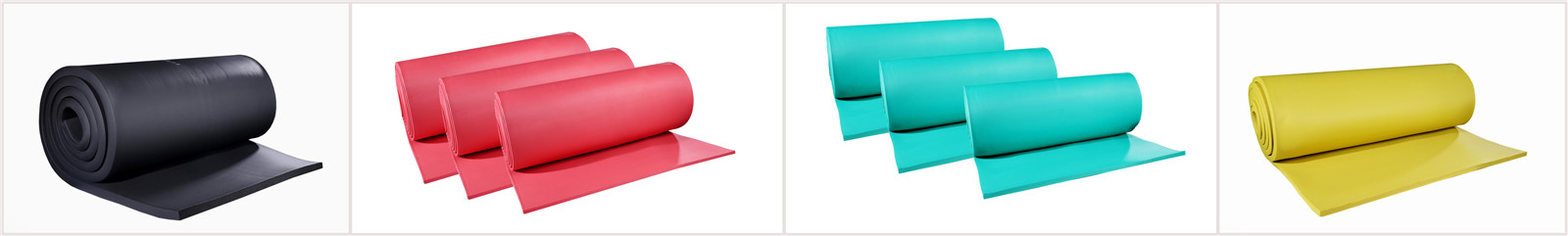

Rubber Foam Insulation Sheet Roll is supplied in flat sheets and packed in sheets with width 40” (1m), in nominal thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm).
Rubber Foam Insulation Sheet Roll is supplied in 40” to 59″ wide (1m to 1.5m) continuous rolls in nominal wall thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm).
| Standard Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Technical Data Specs | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM G21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |

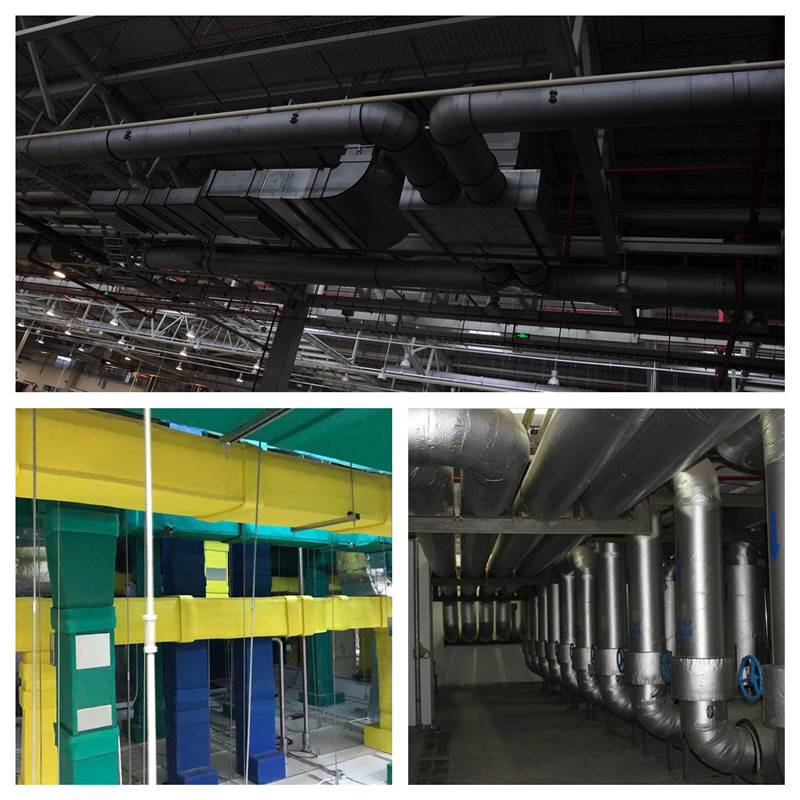

Rubber Foam Insulation Sheet Roll is widely used to retard heat gain and control condensation drip from chilled water and refrigeration systems. It also efficiently reduces heat flow on hot systems.
It is designed for all applications that cannot be accomplished by standard Tube Insulation. It is particularly adaptable for insulating large surfaces, pipelines, and complex shapes.
