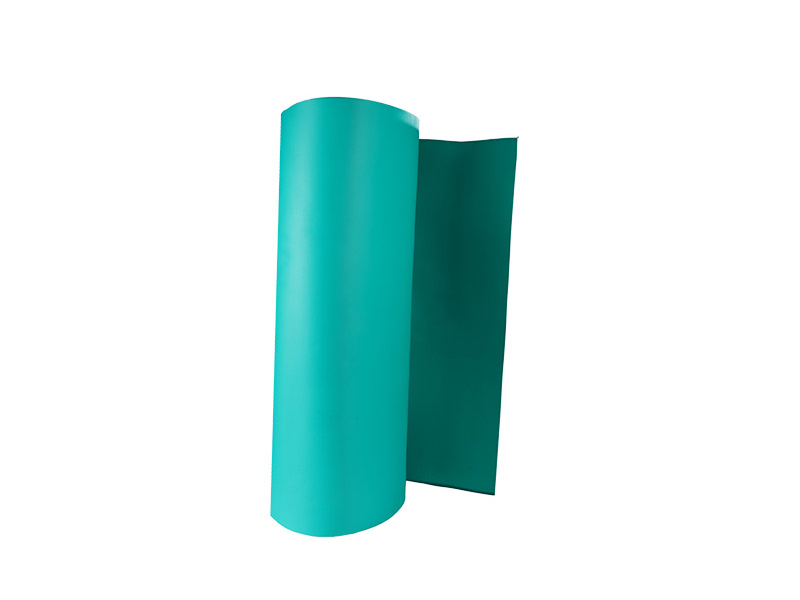

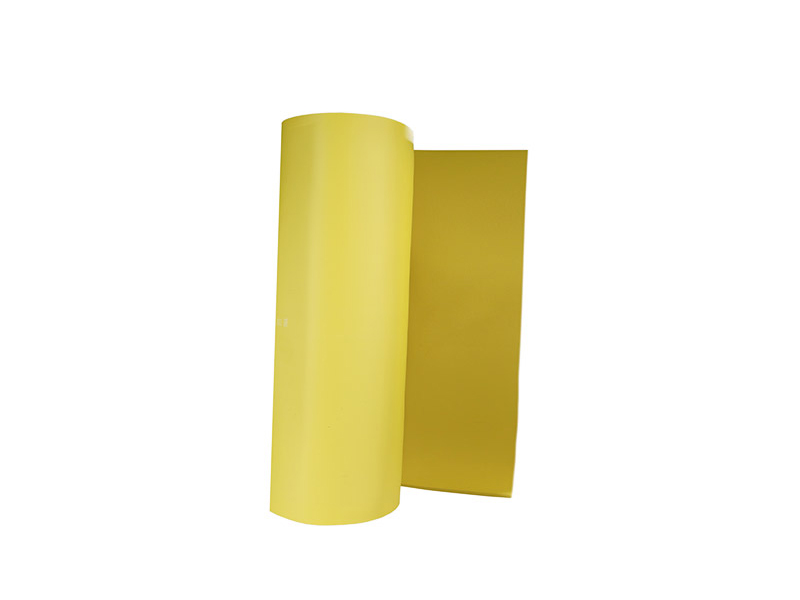

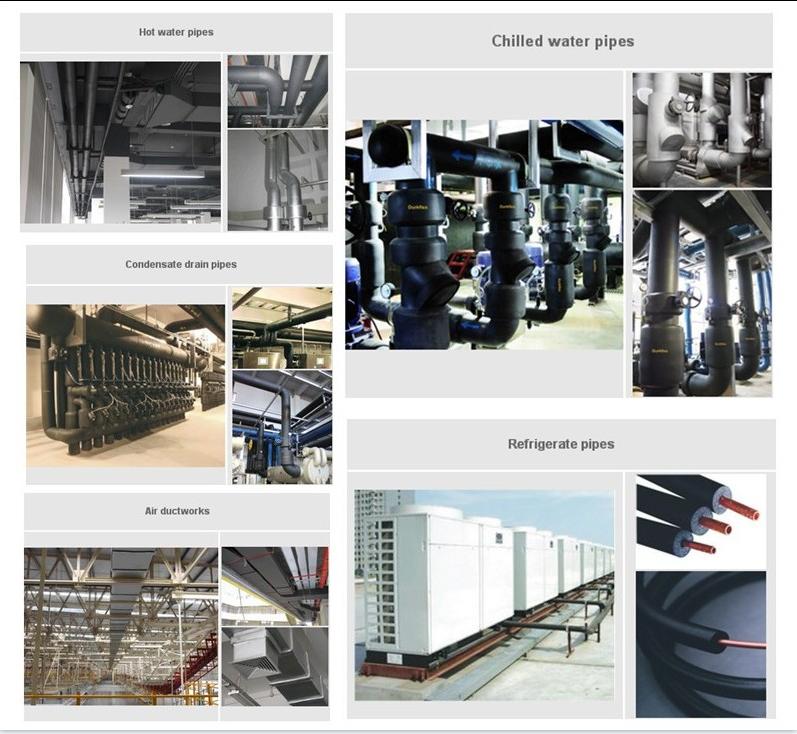

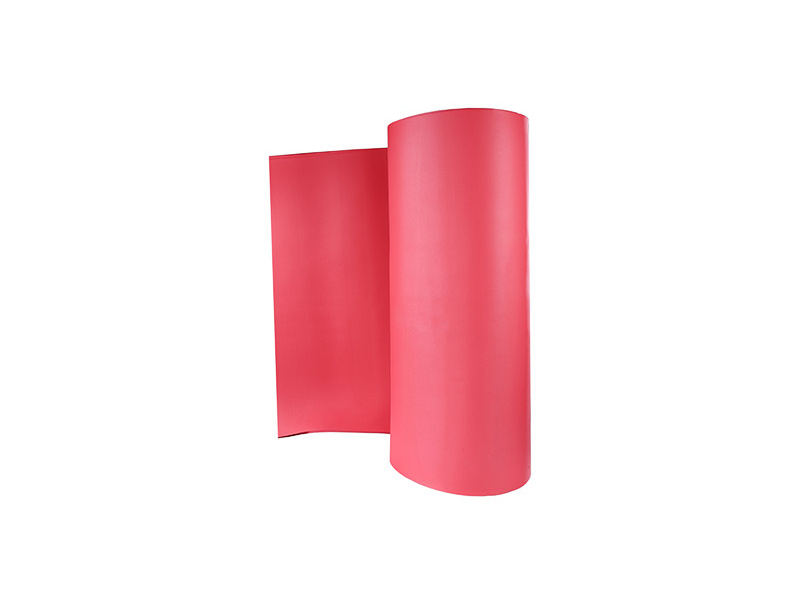

Insulation sheet roll 13mm thickness is a flexible, closed-cell elastomeric sheet insulation product used to conserve energy and prevent condensation on large pipes, ducts (covers), vessels, tanks and equipment.
The Closed cell structure of insulation sheet roll 13mm thickness creates exceptional thermal properties (k-value of 0.245 at 75°F and wvt of 0.03 perm-in) that protect against moisture penetration and heat loss or gain within a -297°F to +220°F temperature range.
Insulation Sheet Roll 13mm thickness is available with 1m, 1.2m and 1.5m width and thickness from 6mm to 30mm.
Insulation Sheet Roll 13mm thickness is non-porous, non-fibrous and resists mold, fungal and bacterial growth. An easy-to-clean and uniquely tough protective skin on both sides provides a better surface to resist moisture and dirt. The double-sided skin can be used with either side facing away from the applied surface, resulting in less waste if one side becomes damaged.
Suitable apparent density and stable closed cell structure create the lowest and the most stable thermal conductivity.
Perfect closed cell structure brings low water absorption and high moisture resistance factor ų. ų value fully promote up to 10000 in the industry-leading.
Passed test of BS 476 part 6 part 7 (Class 0). It has achieved the highest fire certification of BS standard. It can better control balance of the oxygen index and smoke density with foaming chemical reaction fully.
This product has high tear strength. It can prevent surface damage. Meanwhile, compared with the high density material, this insulation is more flexible, and easier to install. The joint is not easy to rebound and gap.
Manufactured without harmful fibers or dust, ensuring clean indoor air quality and compliance with standard ecological safety profiles.
A: The insulation sheet roll offers exceptional thermal properties with a thermal conductivity (k-value) of 0.245 at 75°F, effectively minimizing energy loss or heat gain.
A: It is designed for applications within a temperature range of -297°F to +220°F (-183°C to +104°C), making it suitable for both cold and hot systems.
A: The tough, easy-to-clean skin on both sides resists dirt and moisture. It allows either side to face the outside during installation, which reduces material waste if one side gets scuffed or damaged.
A: Yes, its non-porous and non-fibrous closed-cell construction naturally resists the growth of mold, fungi, and bacteria without needing chemical additives.

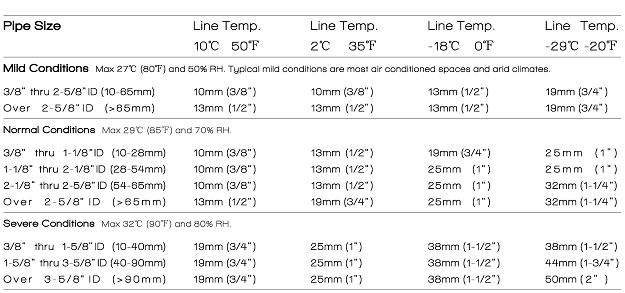

A: The calculation depends on the line temperature, ambient design temperature, relative humidity, and outer diameter of the pipe/equipment to prevent condensation. Proper thickness calculation ensures the outer surface temperature remains above the ambient dew point.
