Noise control system to minimise the risk of corrosion under insulation.
Combined thermal and noise reduction in a single solution.
Significant savings in installation and maintenance costs.

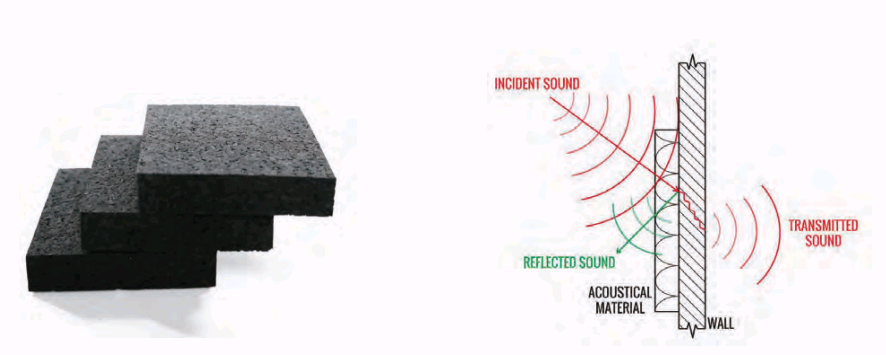

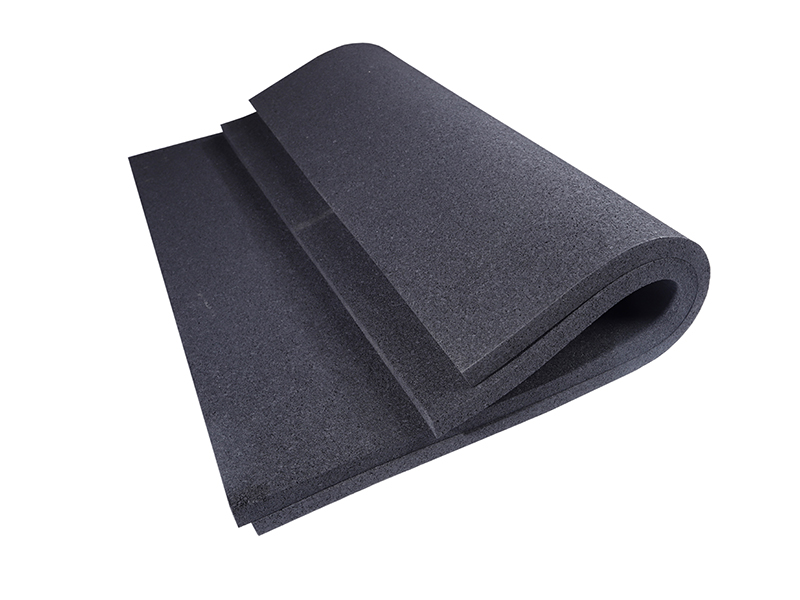

Flexible sound absorbing insulation sheet is a kind of universal sound absorbing material with open cell structure, designed for different acoustic application. Designed for HVAC Ducts, Air Handling Systems, Plant Rooms and Architectural Acoustics.
Excellent internal shock resistance.
Extensive absorption and dispersion of external stresses in local positions.
Avoid material cracking due to stress concentration.
Avoid the cracking of hard foamed material caused by impact.
Reduces duct and plant room noise substantially.
Quick and easy installation - no bitumen, tissue paper or perforated sheet required.
Non-fibrous, no fibre migration & fibre free.
Extremely high noise absorption per unit thickness.
Built-in Microban protection for product lifetime.
High density to dampen duct rattling & vibration.
Self extinguishing, does not drip and does not spread flames.
Super silent and microbe resistant.
| Technical Data of Sound Absorbing Insulation Sheet | |||
|---|---|---|---|
| Physical Properties | Low Density | High Density | Standard |
| Temperature Range | -20℃ ~ +85℃ | -20℃ ~ +85℃ | - |
| Thermal Conductivity (Normal Atmospheric Temp.) | 0.047 W/(m.K) | 0.052 W/(m.K) | EN ISO 12667 |
| Fire Resistance | Class 1 | Class 1 | BS476 Part 7 |
| V0 | V0 | UL 94 | |
| Fireproof, Self-Extinguishing, No Drop, No Flame Propagation | Fireproof, Self-Extinguishing, No Drop, No Flame Propagation | - | |
| Density | ≥160 KG/M³ | ≥240 KG/M³ | - |
| Tensile Strength | 60-90 kPa | 90-150 kPa | ISO 1798 |
| Stretch Rate | 40-50% | 60-80% | ISO 1798 |
| Chemical Tolerance | Good | Good | - |
| Environmental Protection | No Fiber Dust | No Fiber Dust | - |
| No | Thickness | Width | Length | Density | Unit Packing | Size of Carton Box | |
|---|---|---|---|---|---|---|---|
| 1 | 6mm | 1m | 1m | 160KG/M³ | 8 | PC/CTN | 1030mm x 1030mm x 55mm |
| 2 | 10mm | 1m | 1m | 160KG/M³ | 5 | PC/CTN | 1030mm x 1030mm x 55mm |
| 3 | 15mm | 1m | 1m | 160KG/M³ | 4 | PC/CTN | 1030mm x 1030mm x 65mm |
| 4 | 20mm | 1m | 1m | 160KG/M³ | 3 | PC/CTN | 1030mm x 1030mm x 65mm |
| 5 | 25mm | 1m | 1m | 160KG/M³ | 2 | PC/CTN | 1030mm x 1030mm x 55mm |
| 6 | 6mm | 1m | 1m | 240KG/M³ | 8 | PC/CTN | 1030mm x 1030mm x 55mm |
| 7 | 10mm | 1m | 1m | 240KG/M³ | 5 | PC/CTN | 1030mm x 1030mm x 55mm |
| 8 | 15mm | 1m | 1m | 240KG/M³ | 4 | PC/CTN | 1030mm x 1030mm x 65mm |
| 9 | 20mm | 1m | 1m | 240KG/M³ | 3 | PC/CTN | 1030mm x 1030mm x 65mm |
| 10 | 25mm | 1m | 1m | 240KG/M³ | 2 | PC/CTN | 1030mm x 1030mm x 55mm |

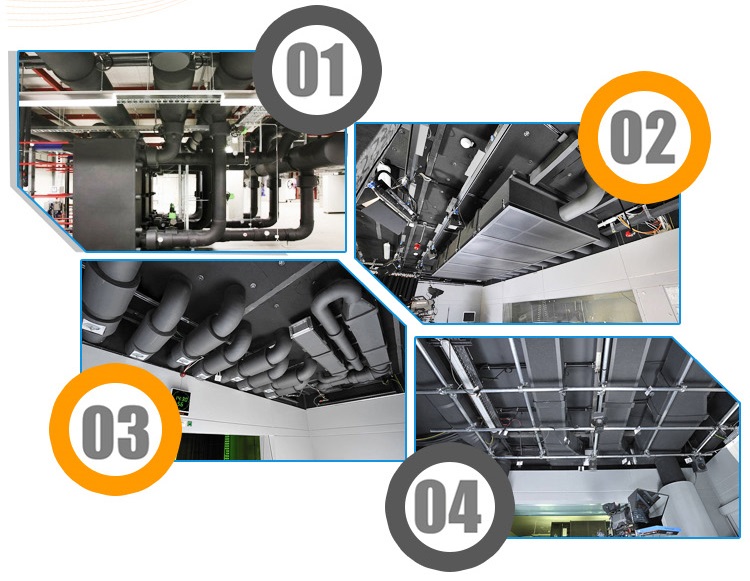

What are the primary applications for this sound absorbing insulation?
It is designed for various acoustic applications, including HVAC ducts, air handling systems, plant rooms, and architectural acoustics.
How does the system help with corrosion under insulation (CUI)?
The noise control system is specifically engineered to minimize the risk of corrosion under insulation while combining thermal and noise reduction in a single solution.
What fire resistance standards does this insulation sheet comply with?
It is fireproof and self-extinguishing. It achieves Class 1 according to BS476 Part 7 and V0 rating according to UL 94 standards, ensuring no dripping and no flame propagation.
What are the available density options and their tensile strengths?
The low density version is ≥160 KG/M³ with a tensile strength of 60-90 kPa. The high density version is ≥240 KG/M³ with a tensile strength of 90-150 kPa.
Is the insulation material safe and fiber-free?
Yes, it is completely fibre-free with no fibre migration and produces no fiber dust. Additionally, it features built-in Microban protection for product lifetime microbe resistance.
