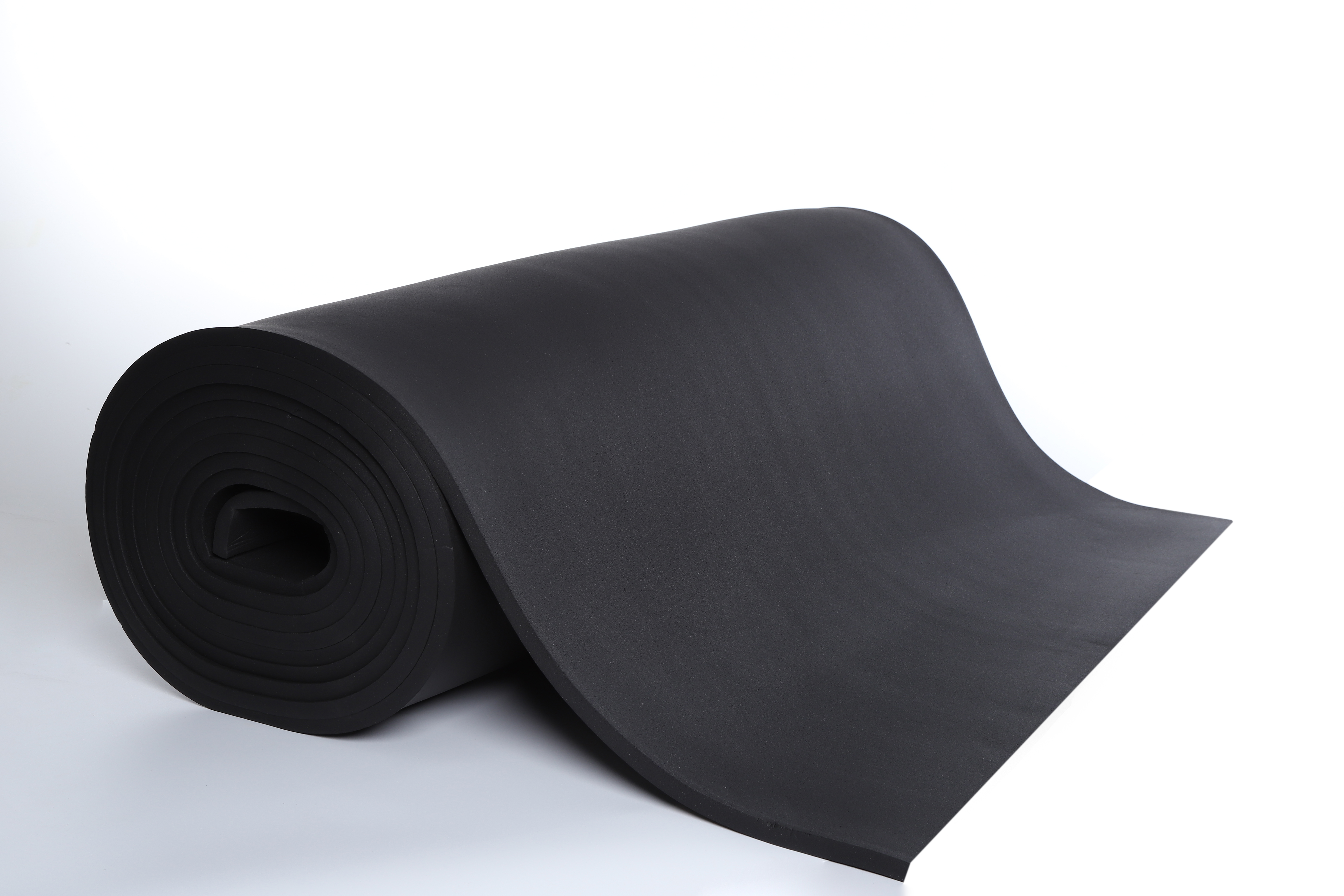

Kingflex uses butyronitrile rubber and polyvinyl chloride (NBR, PVC) as the main raw materials through foaming and other special procedures to form soft and closed-pore foaming heat-insulating materials. Formulated without Chlorofluorocarbons (CFC) and Formaldehyde, the performance of the heat and conductivity factors remains lasting and stable. The product exhibits high fire-proof capabilities (oxygen index ≥ 40%) along with stable performance, anti-cracking properties, high elasticity, and strong resistance to both high and low temperatures. Its excellent corrosion resistance makes it highly anti-aging, convenient and simple to install, and extremely long-lasting in application.
Formulated entirely without CFCs and Formaldehyde.
Superior performance with a measured oxygen index ≥ 40%.
Excellent durability from -50°C up to 110°C.
High elasticity combined with weather and UV resistance.
| Kingflex Dimension | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Kingflex Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | -50 to 110 | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65 Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91 × 10⁻¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 & Part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM G21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |
Kingflex insulation uses premium butyronitrile rubber (NBR) and polyvinyl chloride (PVC) as the primary raw materials, processed using custom foaming techniques to create a flexible, closed-pore thermal barrier.
Yes. Kingflex insulation is manufactured completely free of Chlorofluorocarbons (CFCs) and Formaldehyde, ensuring safe usage in a variety of indoor and outdoor environments.
The material supports a wide operational temperature range, performing stably and resisting cracking at temperatures from -50°C to 110°C.
Kingflex offers outstanding fire safety with a high oxygen index (≥40% in general testing, ≥36 under specific standards), conforming to Class 0 and Class 1 standards (BS 476 Part 6 & Part 7) and an ASTM E 84 Flame/Smoke Index of 25/50.
No. Thanks to its closed-pore structure and chemical resistance, the product exhibits excellent resistance to ozone, UV exposure, weathering, and fungi (rated "Good" under ASTM standards), guaranteeing long-term anti-aging performance.
Thermal conductivity remains low and stable, tested at ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, conforming to ASTM C 518 standards.
