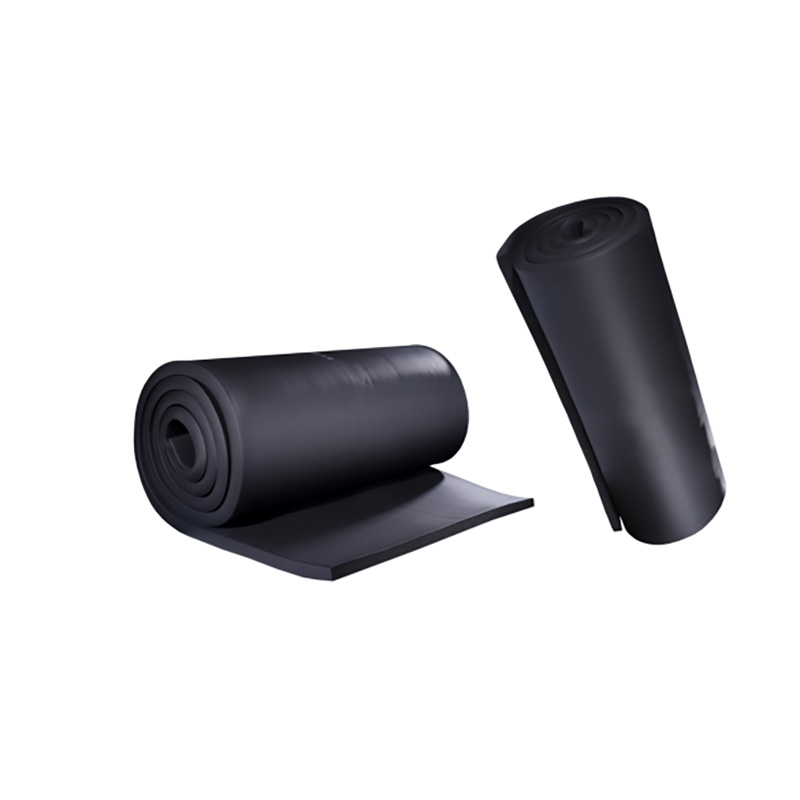

China Heat Insulation Rubber Foam Sheet Manufacturers, Quotes

Product Description

Thermal Insulation Material Showcase 1 Thermal Insulation Material Showcase 2
Dimension Specification Table
Thickness Width 1m Width 1.2m Width 1.5m
Inches mm Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll
1/4" 6 30 × 1 30 30 × 1.2 36 30 × 1.5 45
3/8" 10 20 × 1 20 20 × 1.2 24 20 × 1.5 30
1/2" 13 15 × 1 15 15 × 1.2 18 15 × 1.5 22.5
3/4" 19 10 × 1 10 10 × 1.2 12 10 × 1.5 15
1" 25 8 × 1 8 8 × 1.2 9.6 8 × 1.5 12
1 1/4" 32 6 × 1 6 6 × 1.2 7.2 6 × 1.5 9
1 1/2" 40 5 × 1 5 5 × 1.2 6 5 × 1.5 7.5
2" 50 4 × 1 4 4 × 1.2 4.8 4 × 1.5 6
Technical Data Sheet
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption,%by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Thermal Insulation Advantages
Improve the energy efficiency of the building
Reduce transmission of exterior sound to the interior of the building
Absorb reverberating sounds within the building
Provide thermal efficiency
Keep the building warmer in winter and cooler in summer
Thermal Insulation Application Scenario
Frequently Asked Questions
What are the main performance benefits of this thermal insulation?
This thermal insulation significantly improves energy efficiency, provides high thermal performance to keep interiors comfortable through all seasons, and serves to reduce external noise transmission while absorbing internal echoes.
What temperature limits is this insulation material rated for?
The material possesses an operating temperature range of -50°C to 110°C, tested in compliance with GB/T 17794-1999 standards.
How effective is the material at resisting water and vapor?
It features excellent vapor control with a water vapor permeability of ≤0.91×10⁻¹³ Kg/(m.s.pa) and a high resistance factor (μ ≥ 10000), making it highly resistant to moisture absorption.
Does this insulation offer reliable fire protection properties?
Yes, it achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7, features a low Flame Spread/Smoke Index of 25/50 (ASTM E 84), and has an Oxygen Index of ≥36.
How does the material perform against external environmental factors?
It offers good resistance to environmental hazards, including fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weather exposure (ASTM G23).
What sizing options are available for different project requirements?
It is available in various thicknesses ranging from 1/4" (6mm) to 2" (50mm), and in roll widths of 1m, 1.2m, and 1.5m to suit different installation needs.
