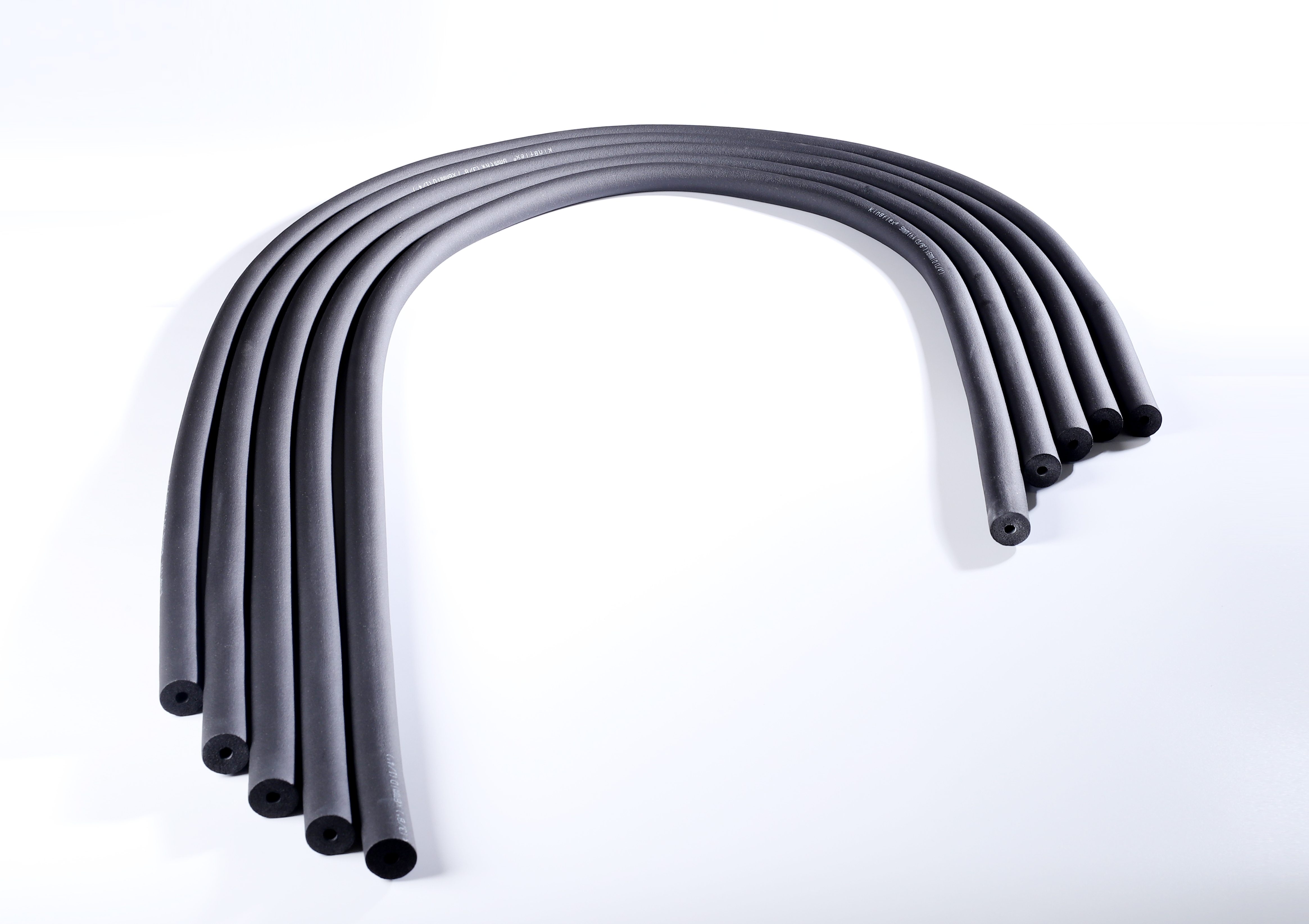

China Kingflex closed cell rubber foam insulation tubes Factory, Factories

Kingflex closed cell rubber foam insulation tubes are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research. The major raw materials we use are NBR/PVC. Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Send Inquiry

Product Description

Technical Data Sheet

Technical Data
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, %by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Key Product Features

Perfect Heat Preservation Insulation

The high density and closed structure of selected raw material has the ability of low thermal conductivity and stable temperature and has an isolation effect of hot and cold medium.

Good Flame Retardant Properties

When burned by fire, the insulation material do not melt and resulting in low smoke and do not make the flame spread which can guarantee the using safety; the material is determined as nonflammable material and the range of Using temperature is from -50℃ to 110℃.

Eco-Friendly Material

The environmental friendly raw material has no stimulation and pollution, no hazard to health and environment. Moreover, it can avoid the mold growth and mouse biting; The material has the effection of corrosion-resistant, acid and alkali, it can increase the life of using.

Easy to Install, Easy to Use

It is convenient to install due to it is not need to install other auxiliary layer and it is just cutting and conglutinating. It will save the manual work greatly.

Product Gallery

Frequently Asked Questions

What is the operating temperature range for this insulation material?

The material is highly durable and operates effectively within a temperature range of -50℃ to 110℃.

How does the material perform in terms of thermal conductivity?

It exhibits excellent insulation capabilities with a thermal conductivity value of ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C.

What fire rating and safety classifications does it possess?

This material is rated Class 0 & Class 1 (BS 476 Part 6 & 7) with a Flame Spread and Smoke Developed Index of 25/50 according to ASTM E 84, ensuring excellent flame retardant safety.

Is this insulation material environmentally friendly?

Yes. It is manufactured using eco-friendly raw materials that are free from stimulation and pollution. It prevents mold growth, resists ozone and weathering, and offers good corrosion resistance.

Does this insulation require auxiliary layers for installation?

No, it is highly user-friendly and does not require additional auxiliary layers. Installation involves simple cutting and conglutinating, saving labor and time.

How does it resist moisture and water absorption?

The product has a water absorption rate of 20% by volume tested under ASTM C 209, combined with high water vapor permeability resistance (μ ≥ 10000) to protect against moisture intrusion.
