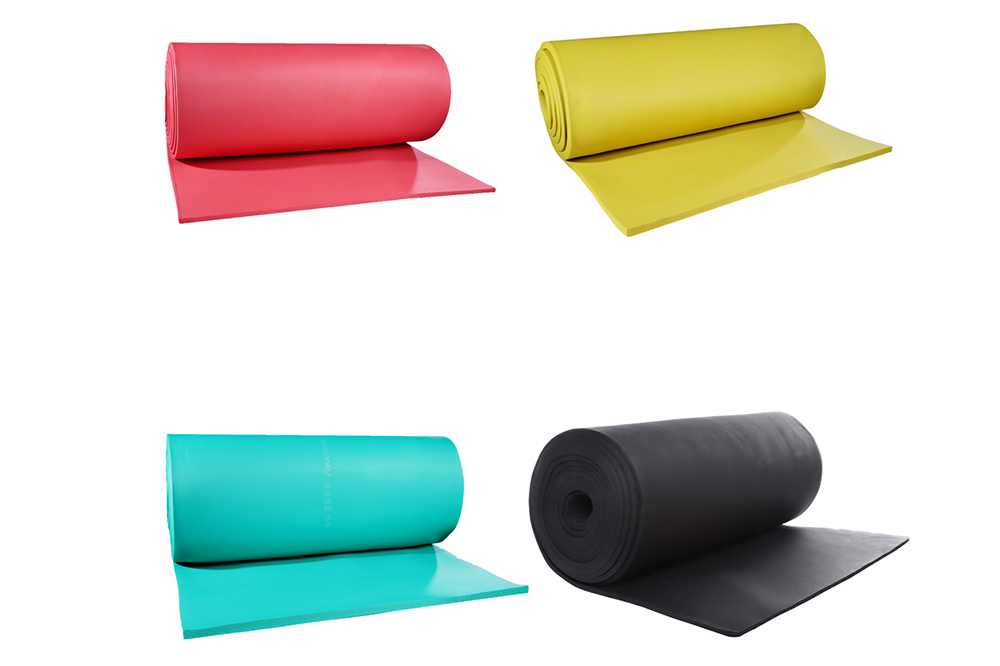

High-quality colorful rubber foam is highly functional. Colors such as blue and red are widely used for the differentiation of hot and cold water pipes. It is a closed-cell foam that offers good moisture resistance, excellent flexibility, and high bending resistance. Other rubber foam colors can be customized according to customer requirements.
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ⁻¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, %by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |
Colored rubber foam sheet has low thermal conductivity, excellent resistance to water vapor penetration ability, and good damp-proof property performance. Different colors make the product highly functional and aesthetically distinct for varied industrial layouts.
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
Colored rubber foam serves as a functional visual coding system, most commonly utilizing red and blue to differentiate hot and cold water pipelines. It also delivers high-performance moisture resistance and outstanding thermal insulation.
The product can safely operate within a temperature range of -50°C to 110°C, conforming to standard GB/T 17794-1999 test parameters.
It achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and Part 7, and matches a 25/50 Flame Spread/Smoke Developed Index in accordance with ASTM E 84.
The rubber foam demonstrates high durability with excellent resistance to weathering, ozone, UV radiation, and fungi, as verified by standard ASTM G23 and ASTM 21 testing.
Yes. While standard colors like red and blue are highly utilized, custom colors are available upon request. Sheet dimensions range in thickness from 1/4" to 2", with widths of 1m, 1.2m, and 1.5m to fit various installation layouts.
