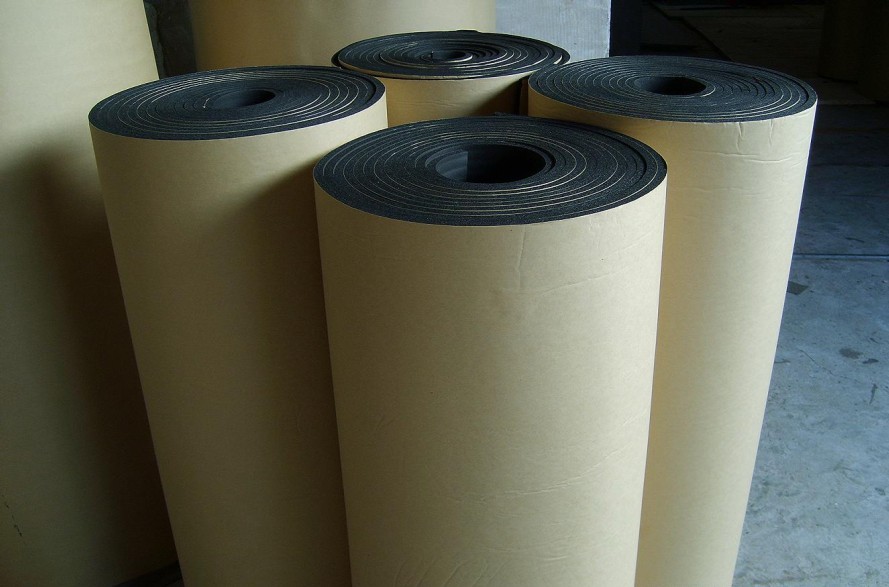

China Rubber foam insulation roll sheet Supplier, Quotes
We do International exports to various countries like USA, Europe, Africa, and Far East Asia has enabled the company to achieve a good brand value and overall global success. Due to the high strength , reinforced ,self-adhesive feature it saves time and labor.
Due to its adhesive feature, it contributes to sealing and reduces the workmanship errors. The most suitable size for duct insulation ; 100cm and 120cm width sheet, and production in 7 different thickness Kinds.
Excellent fire safety performance
It protects pipes against corrosion by environment elements
Low toxicity index means minimal toxic fire hazard for safety assurance
Unique closed cell structures, provides an ideal vapor barrier resistance
Insulation Size Specifications
Thickness
Width 1m
Width 1.2m
Width 1.5m
Inches
mm
Size(L*W)
㎡/Roll
Size(L*W)
㎡/Roll
Size(L*W)
㎡/Roll
1/4"
6
30 × 1
30
30 × 1.2
36
30 × 1.5
45
3/8"
10
20 × 1
20
20 × 1.2
24
20 × 1.5
30
1/2"
13
15 × 1
15
15 × 1.2
18
15 × 1.5
22.5
3/4"
19
10 × 1
10
10 × 1.2
12
10 × 1.5
15
1"
25
8 × 1
8
8 × 1.2
9.6
8 × 1.5
12
1 1/4"
32
6 × 1
6
6 × 1.2
7.2
6 × 1.5
9
1 1/2"
40
5 × 1
5
5 × 1.2
6
5 × 1.5
7.5
2"
50
4 × 1
4
4 × 1.2
4.8
4 × 1.5
6
Technical Data
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m3
45-65Kg/m3
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, %by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions
Q:
What are the benefits of the self-adhesive design on this insulation sheet?
The self-adhesive feature enables faster and more reliable sealing. It simplifies the installation process, reduces manual errors, and ensures a consistent vapor barrier.
Q:
What are the standard sizes and thicknesses available?
The sheets are ideally manufactured in widths of 100cm and 120cm, with a choice of 7 different thickness options ranging from 1/4" (6mm) to 2" (50mm) to match various duct requirements.
Q:
How does the insulation material perform in fire safety tests?
It exhibits high-grade fire performance with Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7, a flame spread/smoke index of 25/50 under ASTM E 84, and a low toxicity index for enhanced safety.
Q:
Does this insulation prevent pipe corrosion?
Yes, its unique closed-cell structure serves as a robust vapor barrier (μ ≥10000) that protects pipes against environmental moisture and elements, preventing corrosion.
Q:
What is the thermal conductivity performance of this material?
It features low thermal conductivity values: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, tested in compliance with ASTM C 518.
Q:
Is the insulation material resistant to environmental degradation like UV or mold?
Yes, technical tests indicate good resistance against fungi (ASTM 21), ozone (GB/T 7762-1987), as well as UV rays and general weathering (ASTM G23).
