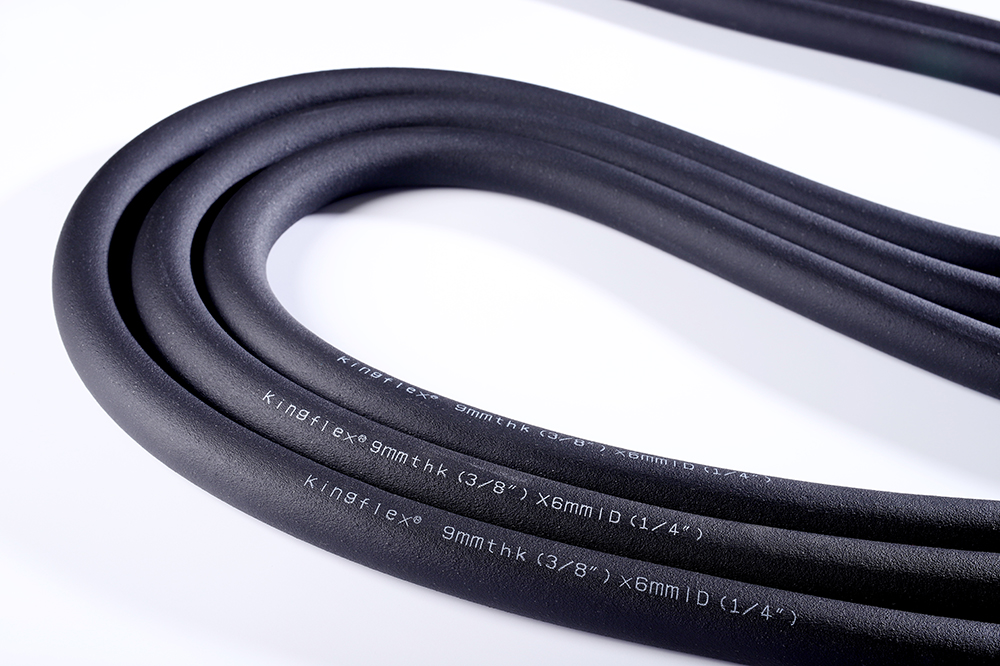

China We produce rubber-plastic foamed heat preservation products Manufacturers, Quotes

We produce rubber-plastic foamed heat preservation products (PVC/NBR) by introducing newest technology and craft and automatic processing line. The major materials we use are NBR/PVC,which are undergone ban bury,vulcanization and foam,Therefore,the main characteristics are:Low density,close bubble structure,low thermal conductivity, Water vapor transmissibility extremely low,low water -absorptive ability,Fire-proof performance well,superior anti-agde performance,good flexibility,easy to install. This product is suitable for a wide temperature range,from -50℃ is to 110℃ ,also has good anti-adge performance and durability.Its fire +proof capacity achieves the standard of BS476 CLASS1 CLASS0. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Insulation product display 1
Insulation product display 2
Insulation product display 3
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ (Water vapor diffusion resistance factor) - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C)
≤0.032 (0°C)
≤0.036 (40°C)
ASTM C 518
Fire Rating - Class 0 & Class 1 BS 476 Part 6 & Part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance - Good GB/T 7762-1987
Resistance to U.V. and weather - Good ASTM G23
Thermal insulation details 1
Thermal insulation details 2
Thermal insulation details 3
Product Overview
The insulation tube is made of NBR and PVC. It doesn't contain fibrous dust, benzaldehyde and Chlorofluorocarbons. Moreover, it has low conductivity & heat conductivity, good moisture resistance and Fireproof.
Key Features & Advantages
1
Air Conditioner Insulation
Ideal for air conditioner rubber insulation tube applications, ensuring optimal temperature maintenance.
2
Low Conductivity
Features extremely low thermal and heat conductivity values to prevent energy loss.
3
Closed Cell Structure
Designed with a closed cell structure to block moisture ingress and enhance thermal performance.
4
Excellent Fireproofing
Highly rated for fire resistance, minimizing flame propagation and smoke development.
5
High Stability
The rubber foam tube offers superb stability and plays an active role in fire prevention.
6
Flexible Installation
Highly flexible material allows for easy bending and convenient installation around pipes and corners.
Insulation applications 1
Insulation applications 2
Insulation applications 3
Insulation applications 4
Product quality control 1
Product quality control 2
Frequently Asked Questions
What materials are the insulation tubes made of?
The insulation tubes are manufactured from a high-quality NBR and PVC blend. They are free from fibrous dust, benzaldehyde, and chlorofluorocarbons (CFCs), making them safe and environmentally friendly.
What is the thermal conductivity of this rubber foam?
The material features low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, tested in compliance with ASTM C 518.
What fire ratings does the insulation tube achieve?
It meets BS 476 Part 6 & 7 Class 0 and Class 1 standards. It also achieves a 25/50 rating for Flame Spread and Smoke Developed Index under ASTM E 84, ensuring excellent fire safety performance.
Is this insulation tube suitable for outdoor applications?
Yes. The material demonstrates good resistance to ozone, UV radiation, weathering, and fungi growth, making it durable for both indoor and outdoor environments.
How flexible is the rubber foam tube during installation?
The rubber foam tube is highly flexible and elastic. It can easily bend and conform to complex pipe geometries, significantly reducing installation time and effort.
What is the temperature range of the insulation tube?
The insulation tube operates safely and effectively within a temperature range of -50°C to 110°C, according to the GB/T 17794-1999 test standard.
