| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption,%by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |

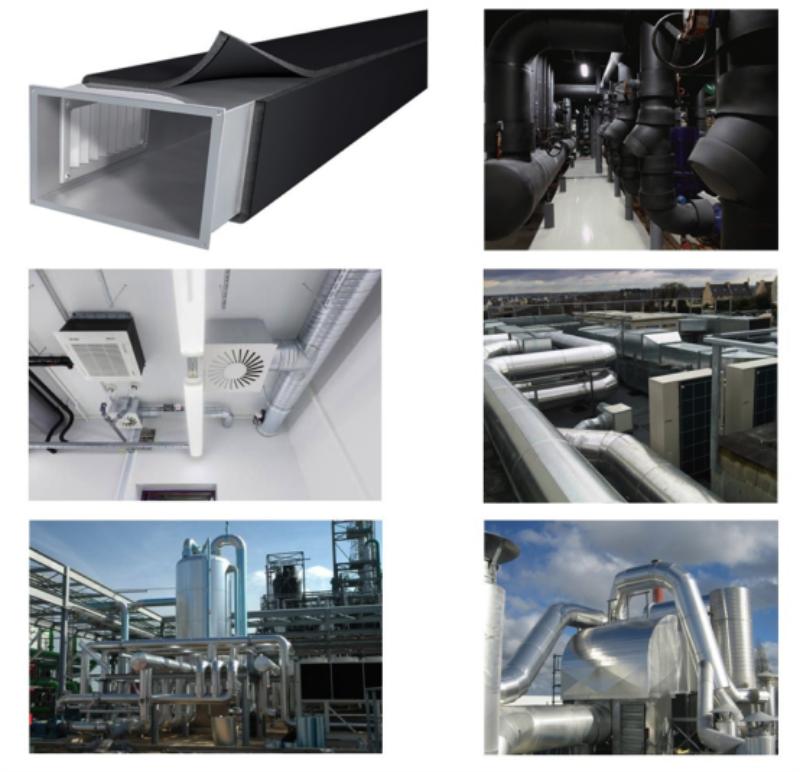

Central air-conditioning system pipelines and equipment, living hot water pipes and equipment, industrial low-temperature piping and equipment, as well as refrigeration system, in particular, apply in electronics, food clean, chemical plant and important public buildings where need higher requirement of cleanness, sound insulation and fire performance demanding.
The insulation sheets are manufactured from synthetical rubber with a closed-cell structure, providing excellent thermal performance and moisture resistance.
This material operates efficiently within a temperature range of -50°C to 110°C, conforming to GB/T 17794-1999 test standards.
It meets Class 0 & Class 1 fire rating requirements (BS 476 Part 6 & 7) and satisfies the 25/50 Flame Spread and Smoke Developed Index under ASTM E 84.
Yes, the sheets offer strong resistance to fungi growth (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering conditions (ASTM G23).
It is ideal for civil and industrial plants, refrigeration, heating, plumbing, tanks, ducts, and environments requiring strict hygiene, sound dampening, and fire protection, such as clean rooms and food processing plants.

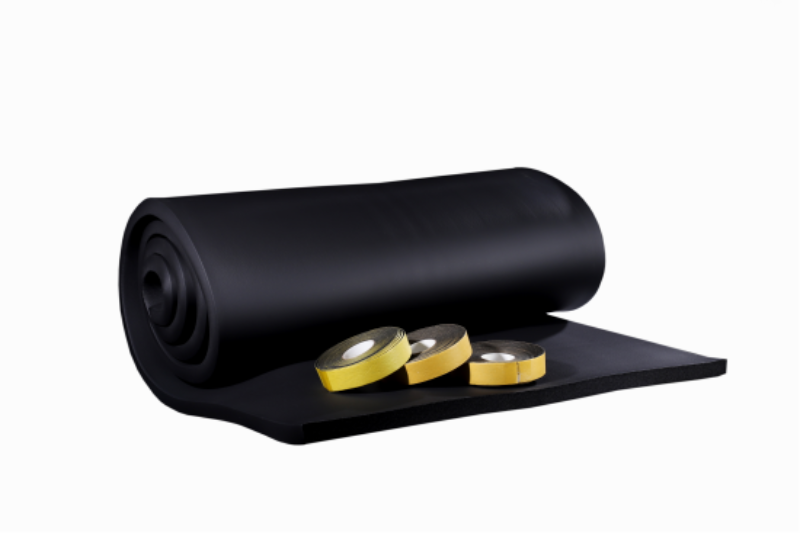

Yes, the insulation sheets are available in multiple thicknesses and can be supplied with a self-adhesive backing for easy installation.
