As one of the major manufacturers of rubber and silicone products, our company has been providing high-quality products and excellent services for customers worldwide. With 40+ years of experience in the industry and through our hard work, our products have won an excellent international reputation.
Aside from standard types in stock, we can also offer professional design and sampling services for your nonstandard OEM needs, backed by reliable quality control.

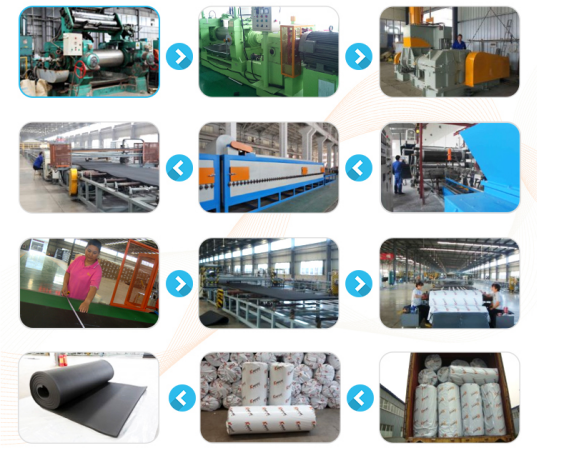

We specialize in rubber foam insulation products for HVAC, building and many other industries. Our production is facilitated with advanced molding, extrusion and foaming equipment.
Manufactured under strict QC procedures, our products meet ROHS, REACH, SGS, BS, CE, DIN, UL 94 tests. Our products are exported to Europe, North America, Southeast Asia and other areas.
We are sticking to developing advanced technologies in order to meet the gradually arise new demands from industries of chemical engineering, mechanical, electronics, auto, construction, pharmaceutical etc. Worldwide importers, wholesalers, distributors are Welcome to visit our factories and discuss long-term partnership. Your gracious comments will be our fresh motivation and encouragement to driving us to be top supplier in this world.
| Dimension Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Technical Data Sheet | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |

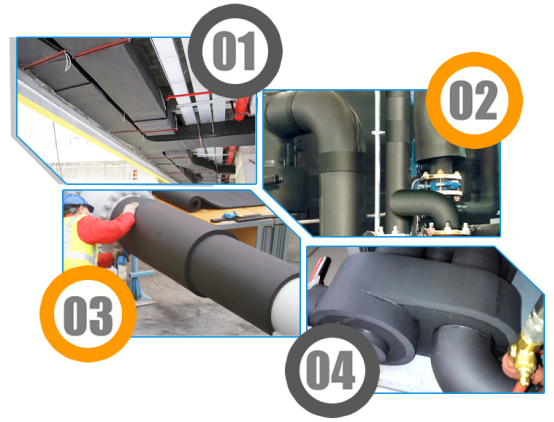

Insulation of workshop and building structures
Air conditioning units and HVAC systems
Sound insulation and absorption systems
Protection of sports equipment, in cushions and diving suits
Every kind of cold and hot medium containers
High lustration environments of tobacco, medicine, electronic, car, and foodstuff industries
Our products reach Class 0 and Class 1 ratings when tested in accordance with BS 476 Part 6 and Part 7 standards. They also show a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
The products are suitable for temperature ranges between -50°C and 110°C, making them ideal for both hot and cold medium containers and HVAC systems.
Yes, our materials exhibit excellent resistance to U.V. and weather (under ASTM G23), ozone (GB/T 7762-1987), and fungi growth (ASTM 21).
Yes. While we offer a wide range of standard thicknesses (from 1/4" to 2") and widths (1m, 1.2m, and 1.5m), we can also provide design and sampling services for your nonstandard OEM requirements.
This insulation is widely utilized in HVAC systems, construction/workshop insulation, sound absorption, sports gear padding, and controlled environments such as medical, automotive, pharmaceutical, and electronic factories.
The material maintains low thermal conductivity values: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, ensuring excellent thermal efficiency.
