Wholesale Kingflex insulation tube adopts high-performance Supplier, Quotes

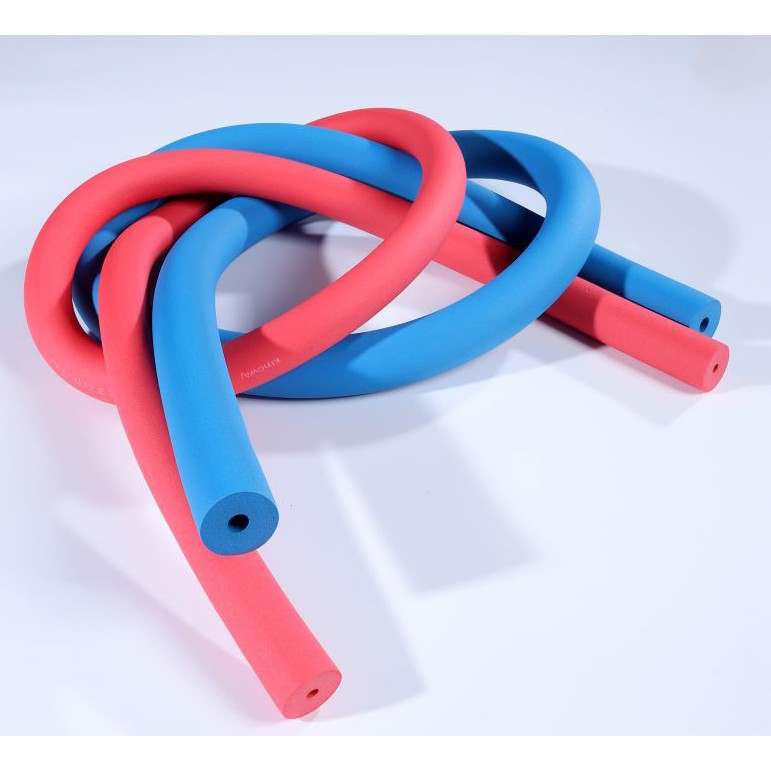

Kingflex insulation tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation.The insulation tubes are manufactured in various diameters and thickness for efficient and precise insulation application. Available colors: Black, Blue, Red. It is widely used for the thermal insulation of various water and steam pipelines in the central air-conditioning freezer, building, ship, vehicle and other industries. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Send Inquiry

Product Description

Our insulation tube features a closed-cell construction designed with high-performance characteristics. It offers excellent properties such as soft resistance refractive index, cold resistance, fire-retardancy, waterproofing, low thermal conductivity, and outstanding shock and sound absorption.

Due to its versatile protective qualities, it is widely utilized across various sectors, including large-scale central and residential air conditioning, building construction, chemicals processing, textile industries, and electrical engineering.

Product Showcase

Technical Specifications

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Key Features & Performance

Excellent thermal insulation with very low thermal conductivity.

Outstanding acoustic insulation properties to reduce noise and vibration transmission.

Highly moisture-resistant and fire-retardant formulation.

Robust structural strength designed to effectively resist deformation.

Closed-cell internal structure ensures consistent physical stability.

Full Compliance: BS476, UL94, DIN5510, ASTM-E84, CE, REACH, ROHS, and GB Certified.

Frequently Asked Questions

What is the operating temperature range for this insulation tube?

According to standard testing method GB/T 17794-1999, the insulation tube operates reliably within a temperature range of -50°C to 110°C.

What fire safety ratings does the insulation material achieve?

The material is tested under BS 476 Part 6 & Part 7, achieving Class 0 & Class 1 fire ratings. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84, and an Oxygen Index of ≥36 (GB/T 2406, ISO4589).

How does the closed cell structure benefit the insulation performance?

The closed-cell structure restricts moisture penetration and limits air movement. This maintains low thermal conductivity (≤0.030 W/(m.k) at -20°C) and prevents water vapor permeability (≤0.91×10 ﹣¹³ Kg/(m.s.pa)), ensuring stable, long-term thermal efficiency.

Is this product resistant to outdoor weather conditions and mold?

Yes. The material demonstrates strong resistance to U.V. light and weathering (ASTM G23), ozone (GB/T 7762-1987), and biological growth such as fungi (ASTM 21), making it suitable for demanding environmental conditions.

Which industries commonly utilize these insulation tubes?

These insulation tubes are widely specified for large-scale central and home air conditioning systems, general building construction, chemical processing pipelines, textile manufacturing, and various electrical installations.
