2. Low Heating Conductivity
3. Low thermal conductivity, Effective reduction of thermal losses
4. Fireproof, soundproof, flexible, elastic
5. Protective, anti-collision
6. Simple, smooth, beautiful and Easy Installation
8. Application: air conditioning, pipe system, studio room, workshop building, construction, equipment etc

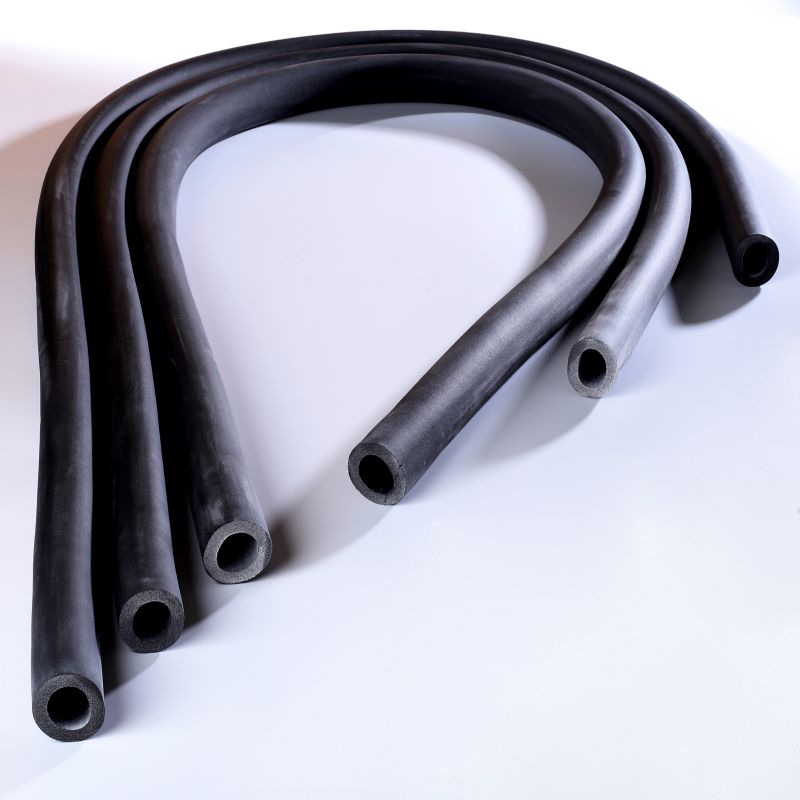

This pipe insulation is a high-quality rubber plastic heat-insulating and heat-preservation material. It has the better thermal conductivity, also has better heat insulation, energy saving property and best moisture resistance factor and longer service life. The standard products are black. Main application: chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment and heat preservation and insulation of central air-conditioning system and every kind of cold/hot medium piping.
| Technical Data |
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615
BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |
What are the primary applications for this rubber plastic pipe insulation?
This material is widely used for insulating chilled water pipes, condensation pipes, air ducts, and hot-water pipes in central air-conditioning and heating systems. It is also suitable for studio rooms, workshop buildings, general construction, and various equipment piping.
What are the key benefits of the closed-cell structure?
The closed-cell structure prevents moisture penetration, offering an exceptionally high water vapor resistance factor (μ ≥ 10000). This provides long-term, stable thermal insulation and prevents condensation and thermal losses.
How does this insulation pipe perform under high and low temperatures?
The insulation features an extensive operating temperature range, performing safely and effectively from -50°C up to 110°C, making it versatile for both cold and hot medium piping systems.
Is this pipe insulation fire resistant?
Yes, it holds a Class 0 & Class 1 fire rating according to BS 476 Part 6 & 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84, and an Oxygen Index of ≥36.
Is the material environmentally friendly and durable?
Absolutely. The insulation is environmentally safe, offers excellent durability with resistance to ozone, fungi (ASTM 21), and U.V. radiation/weathering (ASTM G23), ensuring a long service life.
