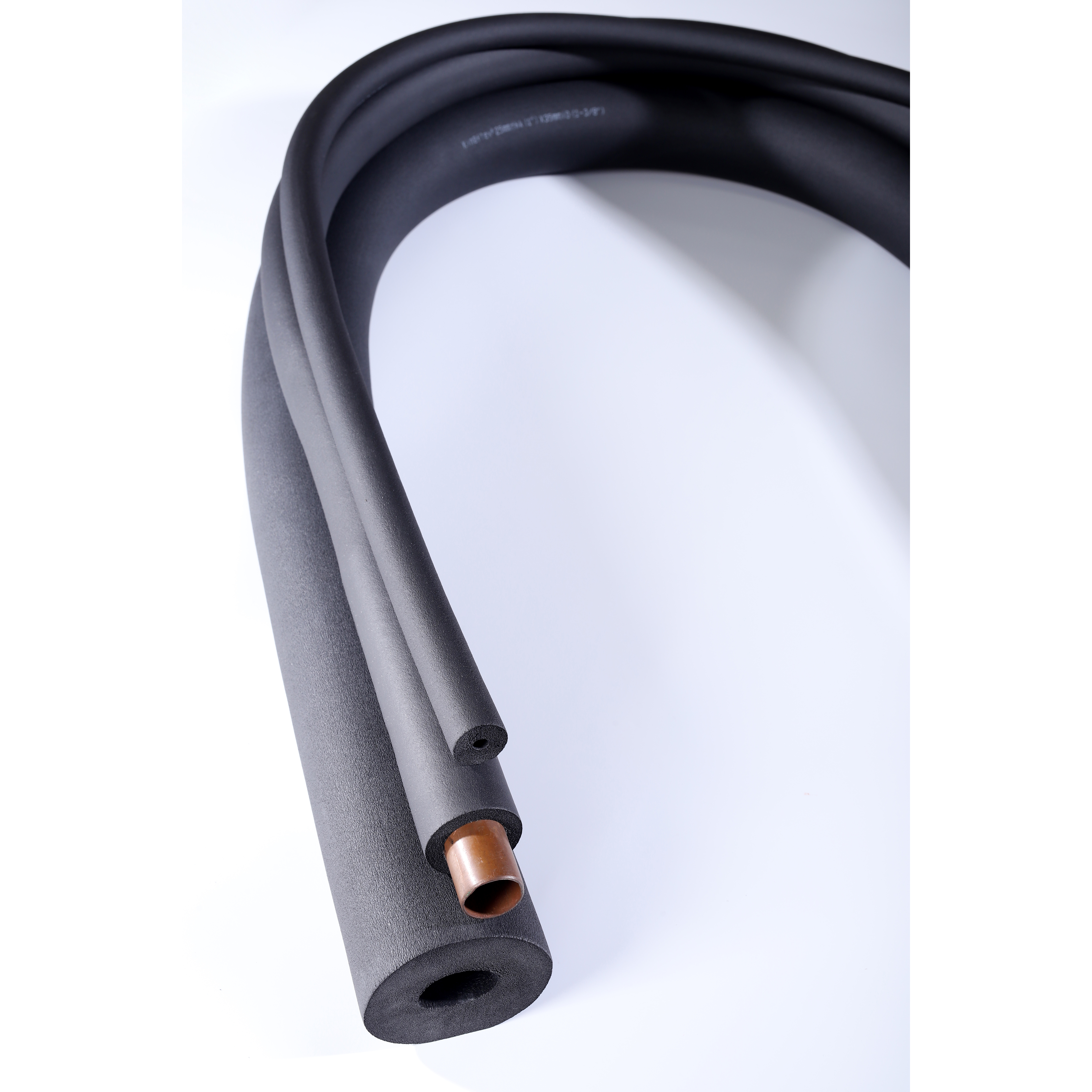

KINGFLEX brand rubber foam insulation tube has a good insulation effect, flexible, effective to reduce the resonance and vibration, and good winding and toughness, easy installation, can be used for variety of curved and irregular pipes, beautiful appearance. Combined with veneer and a variety of accessories, to enhance the while system tightness.
Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).
Standard Length with 6ft (1.83m) or 6.2ft(2m).
Widely used in Chilled water pipes, condense pipes, air ducts and hot-water pipes
Rubber foam insulation tube, Excellent product performance meets different applications. With nitrile rubber as the main raw material, it is foamed into a flexible rubber-plastic heat-insulating material with completely closed bubbles. The excellent product performance makes the product widely used in various public places, industrial plants, clean rooms and medical education institutions.
Technical Data Sheet
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m3
45-65Kg/m3
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions
What is the temperature range for this rubber foam insulation tube?
This insulation tube is engineered to perform reliably within a wide temperature range of -50°C to 110°C, making it suitable for both hot and cold pipeline systems.
What are the primary applications of this product?
It is widely used to insulate chilled water pipes, condense pipes, air ducts, and hot-water pipes in air-conditioning equipment across industrial plants, clean rooms, public areas, and medical institutions.
How does the insulation handle moisture and water vapor?
Thanks to its completely closed-pore foaming structure, the material offers excellent moisture resistance and low water vapor permeability (≤0.91×10 ﹣¹³ Kg/(m.s.pa)), preventing condensation buildup.
Does this insulation material meet fire safety standards?
Yes, it achieves a Class 0 & Class 1 fire rating according to BS 476 Part 6 & Part 7, and has a flame spread and smoke developed index of 25/50 under ASTM E 84 testing.
Is the material durable against environmental factors?
Yes, testing via ASTM methods confirms that the material provides good resistance to fungi, ozone, ultraviolet (U.V.) light, and general weathering, ensuring a long service life.
