Kingflex
Kingflex
Self extinguishing and no drips according to ASTM D635-91.

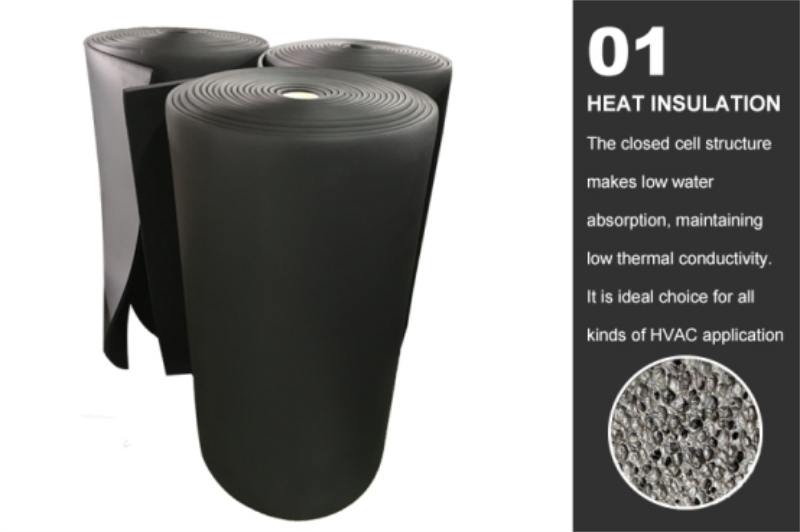

Your smart choice for energy saving, with low thermal conductivity ≤0.034 W/m.K.
No dust and fiber, CFC free, Low VOCs, No fungal growth, Negligible bacterial growth.
Highly flexible, easy to bend around irregular pipes, cut into different shapes and sizes to save labor and materials.
Available in red, blue, green, grey, yellow, and more. Beautifies finished piping lines and simplifies maintenance identification.
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406,ISO4589 |
| Water Absorption,%by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
A: The rubber foam insulation achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and Part 7. It is self-extinguishing and produces no drips under the ASTM D635-91 testing standard, making it highly secure for various piping environments.
A: It is highly energy-efficient, featuring a low thermal conductivity rating of ≤0.034 W/m.K. Specific tests under ASTM C 518 show thermal conductivity ratings as low as ≤0.030 W/(m.k) at -20°C and ≤0.032 W/(m.k) at 0°C, providing exceptional thermal retention and energy savings.
A: Yes, it is eco-friendly. The material contains no dust or fibers, is entirely CFC-free, and emits low VOCs. It is also highly resistant to moisture, supporting negligible bacterial growth and zero fungal growth (complying with ASTM 21 standards).
A: Absolutely. Thanks to its highly flexible physical properties, the rubber foam is easy to bend, shape, and cut. This makes it ideal for irregular pipelines, elbows, and fittings, saving significant time, labor, and excess material costs during installation.
A: Roll thicknesses range from 1/4" (6mm) up to 2" (50mm). Standard rolls are available in widths of 1m, 1.2m, and 1.5m, with varying lengths to accommodate different project requirements and maximize coverage efficiency.
A: Yes, the rubber foam can be customized in various colors, including red, blue, green, grey, and yellow. This assists with color-coding different service lines, resulting in cleaner aesthetics and easier system maintenance.
