This solution system overcomes stress at low temperatures and provides maximum mechanical performance.
| Property | Base material | Standard / Test Method | |
|---|---|---|---|
| Cryogenic ULT | Cryogenic LT | ||
| Thermal Conductivity | -100°C, 0.028 -165°C, 0.021 |
0°C, 0.033 -50°C, 0.028 |
ASTM C177 |
| Density Range | 60-80Kg/m³ | 40-60Kg/m³ | ASTM D1622 |
| Recommend Operation Temperature | -200°C to 125°C | -50°C to 105°C | - |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10g(m.m.Pa) | ASTM E 96 |
| Wet resistance Factor (μ) | NA | >10000 | EN12086 EN13469 |
| Water Vapor Permeability Coefficient | NA | 0.0039g/h.m² (25mm thickness) |
ASTM E 96 |
| PH | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength Mpa | -100°C, 0.30 -165°C, 0.25 |
0°C, 0.15 -50°C, 0.218 |
ASTM D1623 |
| Compressive Strength Mpa | -100°C, ≤0.3 | -40°C, ≤0.16 | ASTM D1621 |

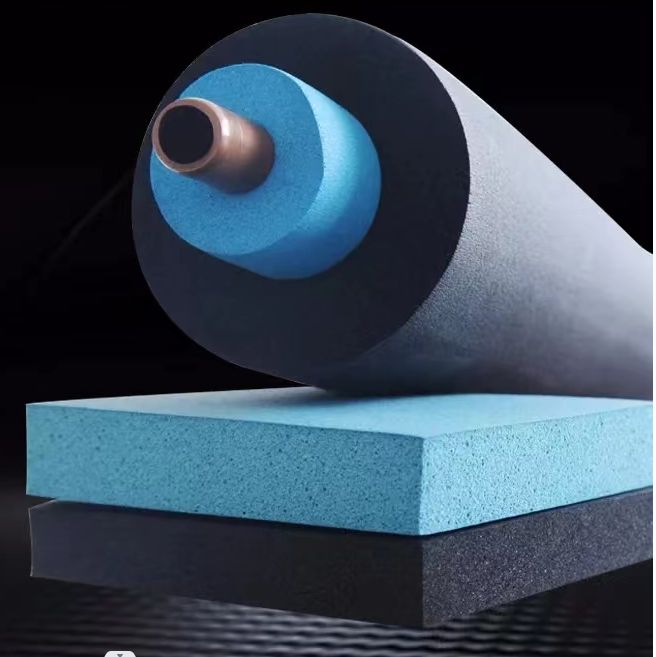

Cryogenic ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import/export pipelines and process areas of liquefied natural gas (LNG) facilities. It is part of the Cryogenic multi-layer configuration, providing low temperature flexibility to the system.
| Thickness | Size (L*W) | ㎡/Roll | |
|---|---|---|---|
| Inches | mm | ||
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |
Cryogenic ULT is a flexible, high-density, and mechanically robust thermal insulation material. It is based on extruded elastomeric foam with a closed-cell structure, specifically designed to withstand extreme low-temperature environments.
It is developed for import/export pipelines and process areas of liquefied natural gas (LNG) facilities. It serves as part of a multi-layer configuration that delivers essential low-temperature flexibility and thermal protection.
Cryogenic ULT is recommended for extreme temperature ranges from -200°C to 125°C. For moderately low-temperature systems, Cryogenic LT can be used, which operates between -50°C and 105°C.
The insulation material has a closed-cell area percentage greater than 95%. Cryogenic LT features a water vapor permeability coefficient of 0.0039g/h.m² (at 25mm thickness) and a wet resistance factor of over 10,000, ensuring excellent moisture barrier performance.
The product comes in rolls with standard sizes of 10m x 1m for the 3/4" (20mm) thickness option and 8m x 1m for the 1" (25mm) thickness option.
