Wholesale Rubber plastic plate 1 Pricelist, Quotes

Send Inquiry

Product Description

Rubber Foam Dimensions

Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Technical Data

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Product Overview

This is a fast growing enterprise specialized in Rubber Insulation Foam. The products include Thermal Insulation, Sound Insulation, Adhesive insulation series, and so on. They are widely used in the industry of Construction, Vehicle, Chemical storage and Transportation.

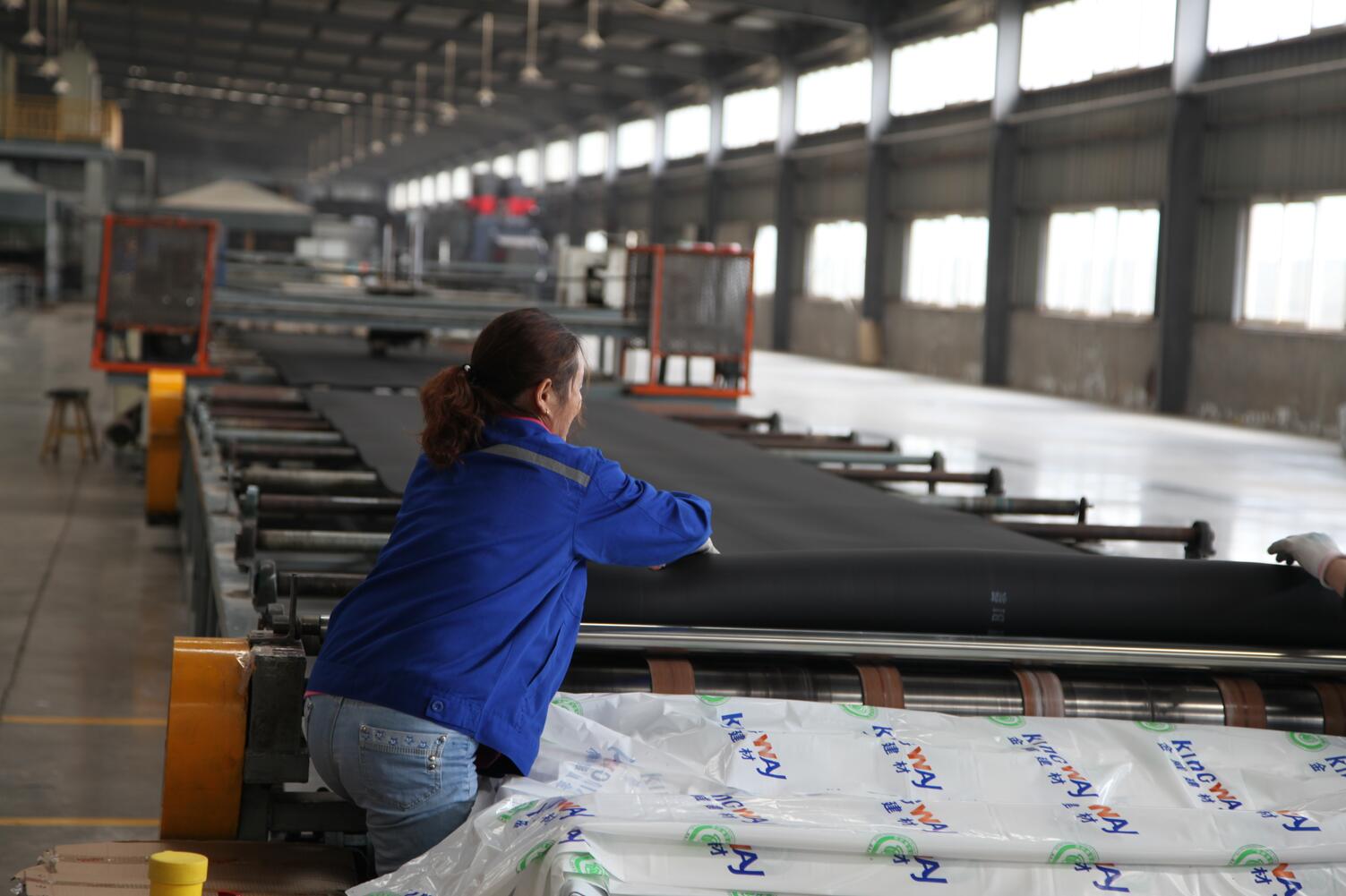

Our Rubber foam Material is soft heat-insulating, heat-preservation and energy conservation materials made with advanced technology at home and advanced full-automatic continuous production line imported from abroad, using butyronitrile rubber with best performance and polyvinyl Chloride (NBR,PVC) as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.

Frequently Asked Questions

Q: What is the temperature range of the rubber insulation foam?

The material performs efficiently within a temperature range of -50°C to 110°C, tested in compliance with GB/T 17794-1999 standards.

Q: What is the thermal conductivity rating at different temperatures?

According to ASTM C 518 test standards, the thermal conductivity values are ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C.

Q: What fire ratings does the insulation material achieve?

Our rubber insulation foam meets Class 0 and Class 1 fire standards (BS 476 Part 6 & 7) and features a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.

Q: Is this rubber foam resistant to mold and ozone?

Yes, the material features good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and weather/U.V. exposure (ASTM G23), ensuring long-term durability.

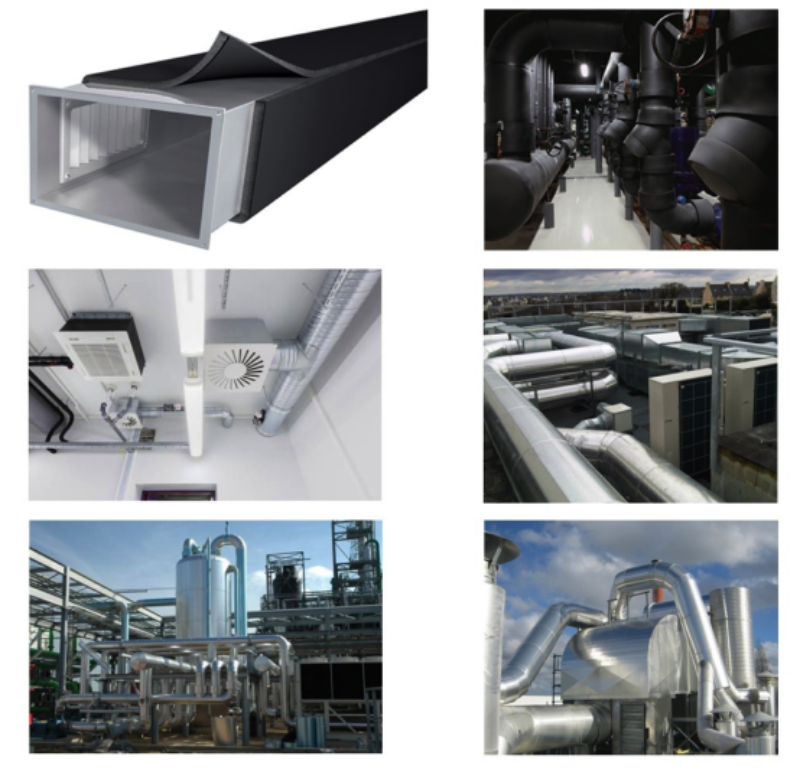

Q: In which industries are these rubber foam materials commonly applied?

They are widely utilized across construction, vehicle manufacturing, chemical storage, and transportation industries for heat preservation, soundproofing, and energy conservation.
