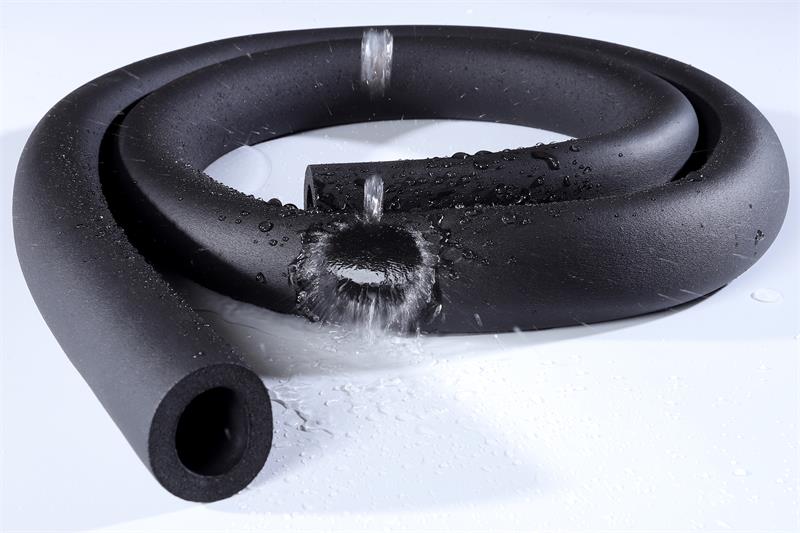

Kingflex rubber foam insulation material are used for the heat-insulating and heat-preservation of shell of big tanks and piping in the construction, business and industry, heat insulation of air conditioners ,heat insulation of joint pipes of house air conditioners and automobile air conditioners.
Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm)
Standard Length with 6ft (1.83m) or 6.2ft (2m).
Kingflex Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m³
45-65Kg/m³
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406,ISO4589
Water Absorption,%by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Stability
Moisture Resistance
Fire Resistance
Environmental health without formaldehyde
Frequently Asked Questions
?What are the main applications of Kingflex rubber foam insulation?
Kingflex rubber foam insulation materials are widely used for the heat-insulating and heat-preservation of shells of large tanks and piping in construction, business, and industry, as well as the thermal insulation of joint pipes for both household and automotive air conditioners.
?What wall thicknesses and lengths are available?
The nominal wall thicknesses range from 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ to 2” (or 6, 9, 13, 19, 25, 32, 40, and 50mm). The standard lengths provided are either 6ft (1.83m) or 6.2ft (2m).
?What is the thermal conductivity of Kingflex insulation?
According to ASTM C 518 standards, Kingflex insulation has a low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C.
?Does the material provide adequate fire safety?
Yes, it features a Class 0 & Class 1 fire rating under BS 476 Part 6 & 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84) and an Oxygen Index of ≥36 (GB/T 2406, ISO4589).
?Is this insulation resistant to environmental factors?
Yes. It displays strong resistance to moisture with a water vapor permeability of ≤0.91×10 ﹣¹³ Kg/(m.s.pa). It also shows excellent resistance to ozone, UV rays, harsh weather, and fungi growth (tested under ASTM 21).
?Is the insulation material safe for environmental and indoor health?
Yes, Kingflex rubber foam insulation supports environmental and indoor health as it is manufactured without formaldehyde.
