Kingflex Kingflex

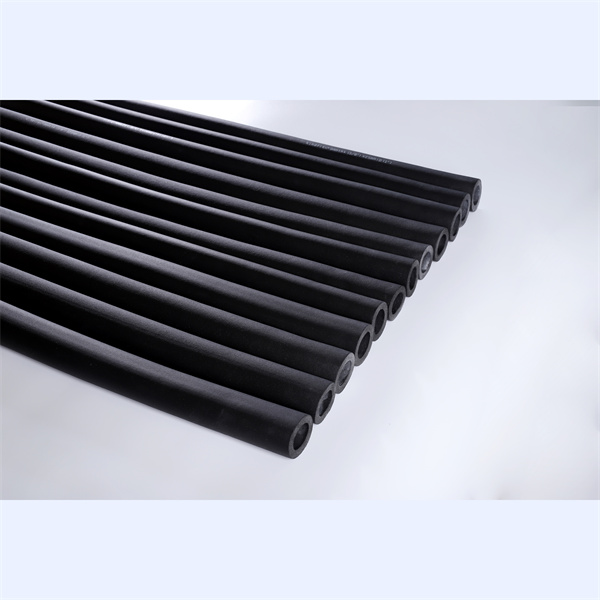

Wholesale Kingflex NBR Elastomeric Insulation Rubber Foam Tube Manufacturer, Factory

Kingflex NBR Elastomeric Insulation Rubber Foam Tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation. It has closed cell construction and has many great features such as soft resistance refractive index, cold resistance, fire-retardant, waterproof, low thermal conductivity , shock and sound absorption and so on. It can be widely used in large-scale central and home air conditioning,construction, chemicals, textile and electrical industries. Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Insulation Material Performance Showcase 1
Insulation Material Performance Showcase 2
Insulation Material Performance Showcase 3
Insulation Material Performance Showcase 4
Key Features & Benefits
low density close and even bubble structure
low thermal conductivity
cold resistance
extremely low water vapor transmissibility
low water absorptive capacity
great fireproof performance
superior anti-age performance
good flexibility
stronger tear strength
higher elasticity
smooth surface
no formaldehyde
shock absorption
sound absorption
easy to install

NBR Elastomeric Insulation Rubber Foam Tube is generally black in color, other colors are available upon request. The extruded flexible tube are specially designed to fit the standard diameters of copper, steel and PVC piping.

NBR Elastomeric Insulation Rubber Foam Tube
Technical Data Sheet
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, %by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Application Details 1
Application Details 2
Application Details 3
Application Details 4
Application Details 5
Application Details 6
Application Details 7
Frequently Asked Questions
Q:What is the temperature range for NBR Elastomeric Insulation?
The temperature range is from -50°C up to 110°C, tested in compliance with standard GB/T 17794-1999.
Q:Does this insulation tube offer good fire protection?
Yes, it achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7 testing methods. It also meets the ASTM E 84 standard with a Flame Spread and Smoke Developed Index of 25/50.
Q:Is NBR foam insulation resistant to moisture and water vapor?
Yes, it has a low density close and even bubble structure that ensures extremely low water vapor transmissibility (Permeability ≤ 0.91×10 ﹣¹³ Kg/(m.s.pa), μ ≥ 10000) and low water absorptive capacity.
Q:Can this insulation be used outdoors and resist weathering?
Absolutely. The material has demonstrated excellent resistance to ozone (GB/T 7762-1987), UV rays, and general weathering conditions under ASTM G23 testing.
Q:What types of pipes is this insulation tube compatible with?
The extruded flexible tube is specifically designed to fit standard diameters of copper, steel, and PVC piping, offering high elasticity and flexibility during installation.
