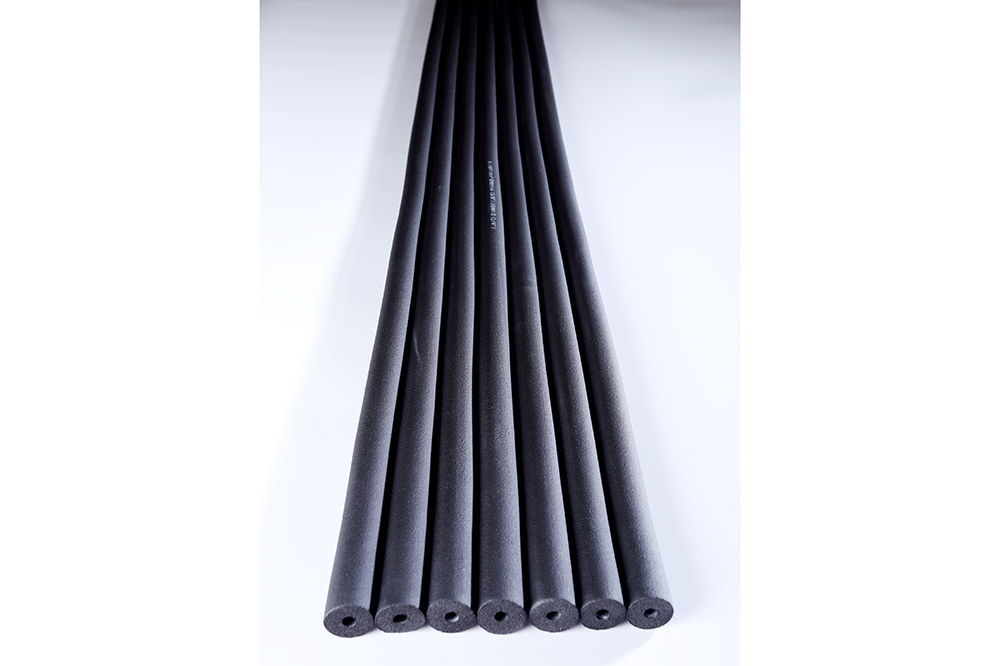

Wholesale Insulation rubber foam product Factories, Pricelist

We mainly specialized in insulation rubber foam product, it has closed cell construction and  many great features such as low thermal conductivity , elastomeric,hot and cold resistant, fire retardant, waterproof, shocks and sound absorption and so on. The rubber materials is widely used in large central air conditioning system,chemicals,electrical industries such as the types of hot and cold media pipeline, all kinds of fitness equipment jacket/pads and so on to achieve lower cold loss. The main characteristics are: low density, close and even bubble structure, low thermal conductivity, cold resistance, extremely low water vapor transmissibility, low water absorbtive capacity, great fireproof performance, superior anti-age performance, good flexibility, stronger tear strength, higher elasticity, smooth surface, no formaldehyde, shock absorption, sound absorption, easy to install. The product is suitable for a wide range of temperature from -50℃ to 110℃. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Thermal Insulation Material
Thermal Insulation Structure
Insulation Performance Testing
Flexible Thermal Insulation
Insulation Application
Material Closed Cell Details
Thermal Conductivity Testing
Fire Resistant Insulation
Moisture Resistant Material
Insulation Quality Standards
  • Excellent thermal insulation - very low thermal conductivity
  • Excellent acoustic insulation - can reduce noise and sound transmitting
  • Moisture resistant, fire resistant
  • Good strength to resist deformation
  • Closed cell structure
  • ASTM / SGS / BS476 / UL / GB Certified
Technical Layout
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index 25/50 ASTM E 84
Oxygen Index ≥36 GB/T 2406,ISO4589
Water Absorption,%by Volume % 20% ASTM C 209
Dimension Stability ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Quality Inspection
Frequently Asked Questions

What are the main advantages of this thermal insulation material?

This material features low thermal conductivity for highly efficient thermal insulation, outstanding acoustic dampening, reliable moisture and fire resistance, strong structural resistance to deformation, and a fully closed-cell design.

What is the certified operating temperature range?

According to standard testing method GB/T 17794-1999, the insulation performs safely and effectively within a temperature span of -50°C to 110°C.

How does this insulation handle moisture and condensation?

The product is designed with a closed-cell structure and possesses a high water vapor permeability resistance factor (μ ≥ 10000), which effectively blocks moisture penetration to prevent condensation.

What safety and quality certifications does this material have?

The material is comprehensively tested and certified under various international standards, including ASTM, SGS, BS476 (Class 0 & Class 1 fire rating), UL, and GB.

Is this insulation material durable against external weathering and fungi?

Yes, it demonstrates excellent resistance against mold and fungi (ASTM 21), ozone (GB/T 7762-1987), as well as direct ultraviolet exposure and outdoor weather degradation (ASTM G23).
