Kingflex
Kingflex
High-density elastomeric thermal rolls optimized for large-scale duct insulation in high-humidity regions like Karachi.
View Specifications
Precision-manufactured tube insulation preventing condensation on VRF and chiller lines under extreme ambient temperatures.
View Specifications
Excellent sound dampening properties combined with thermal barrier performance, ideal for commercial complexes.
View Specifications
Universal insulation sheet roll suitable for heavy industrial piping, HVAC plenums, and roof systems in Faisalabad textile mills.
View SpecificationsPakistan is currently navigating an unprecedented phase of infrastructural modernization, led prominently by the China-Pakistan Economic Corridor (CPEC) initiatives. Spanning from the heavy industrial zones of Port Qasim and Landhi in Karachi to the high-tech commercial layouts in Lahore and Islamabad, the requirement for robust energy conservation technologies has surged. In regional climates where ambient dry-bulb temperatures regularly exceed 45°C in Punjab and Sindh, active HVAC systems face enormous energy pressures.
Mechanical engineers and EPC contractors operating in Pakistan realize that structural insulation is no longer just a regulatory checkbox but a fiscal necessity. Lower quality, open-cell insulating materials degrade rapidly under high humidity and intense solar loads, causing massive energy losses, thermal bridging, and the hazardous occurrence of Corrosion Under Insulation (CUI) on chilled water lines. NBR/PVC closed-cell elastomeric rubber foam presents the optimum thermodynamic barrier required to survive these severe sub-continental conditions.
On a global scale, procurement managers are increasingly shifting away from traditional mineral wools and open-cell fiberglass systems in modern chiller water loops and low-temperature process lines. The core challenges include logistics inefficiencies, material degradation due to environmental moisture, and toxic particle shedding. Kingflex addresses these requirements by delivering factory-direct, high-performance elastomeric sheets and tubes engineered to pass strict UL94, ASTM, and CE certifications.
| Performance Metric | Kingflex Elastomeric NBR/PVC Rubber Foam | Traditional Rock Wool Insulation | Glass/Mineral Fiber Systems |
|---|---|---|---|
| Thermal Conductivity (λ) at 0°C | ≤ 0.034 W/(m·K) (Outstanding Thermal Resistance) | ~0.040 W/(m·K) | ~0.038 W/(m·K) |
| Moisture Vapor Permeability Resistance (μ) | ≥ 10,000 (Completely Closed-Cell) | μ ~ 1 (Highly Permeable) | μ ~ 1.2 (Needs external vapor barrier) |
| Operating Temperature Threshold | -40°C to +105°C (Ideal for Chillers & low-temp steam) | Up to 650°C (Industrial boiler piping) | -18°C to +250°C |
| Fire Safety Compliance Rating | BS 476 Class 0, UL94 V-0 Self-extinguishing | Class A1 Non-combustible | Class A1 / Class B1 depending on binder |
| Corrosion Under Insulation (CUI) Risk | Negligible (Does not absorb water/corrosive agents) | High (Traps condensation against metal pipes) | Medium to High |
| Structural Flexibility | Excellent (High compression resilience ≥ 80%) | Rigid / Semi-Rigid (Prone to cracking under stress) | Brittle / Fibrous (Sheds fibers) |
Material Structure: High-performance elastomeric NBR/PVC closed-cell foam with regular bubble matrices. Densities strictly maintained at 40-55 kg/m³ to achieve a balance between thermal dampening and mechanical integrity.
Material Structure: Seamlessly extruded elastomeric tubing designed for quick sliding over structural pipe work. Ensures full tight sealing to prevent ambient humid air contact with chill pipes.
Employing heat-flow meter methodologies to test and maintain stable, long-term k-values for all batches shipped to South Asia.
Checking chemical cell distribution to ensure a consistent rating exceeding 98% closed cells, mitigating water ingress potential.
Running real-time BS 476 chamber simulations to formulate non-halogenated, low-smoke, flame-retardant elastomeric compounds.
Kingflex Insulation Co., Ltd. is a professional manufacturing and trading combo for thermal insulation products. Kingflex research, development, and production department is located in the well-known capital of green-building materials in Dacheng, China. It is an energy-saving, environmentally friendly enterprise concentrating on research, development, production, and sales.
In operation, Kingflex takes energy saving and consumption reduction as its core concept. We provide solutions regarding insulation by means of consultation, research and development, production, installation guidance, and post-sale service to lead the development of the global building materials industry.
Kingflex is established by the Jinwei/Kingway Group, which has more than a 40-year history. Kingway Group, established in 1979, was the first manufacturer of thermal insulation materials north of the Yangtze River.
Our team consists of eight professional engineers in the R&D Department, 6 professional international sales specialists, and 230 workers in the production department, working together to deliver first-class service to clients globally.
At present, Kingflex runs 5 large automatic assembly lines, generating an annual production capacity of more than 600,000 cubic meters. Our factories have become the designated manufacturing facilities recognized by the Ministry of Energy, the Ministry of Electric Power, and the Ministry of Chemical Industry.
Our insulation systems are widely utilized across complex civil building sectors, marine works, petrochemical networks, aerospace structures, and power generation stations. Over the past 16 years, our export footprints have covered 66 foreign countries.
To supply customers all over the world with a full set of energy-saving insulation systems, serving as the integrated solutions provider of thermal insulation, cold insulation, and noise reduction for buildings and industries.
Transparency is key to our international operations. Below are authentic documentation clips of our ongoing communication and delivery confirmations with clients ordering large shipments of rubber foam sheets and custom pipe designs.
Ideal for air conditioning systems, providing condensation prevention and thermal efficiency.
Specifically treated NBR matrix to repel chemical cleaning agents in industrial process lines.
High flexibility configuration allowing installation around tight plumbing curves and bends.
Standard closed-cell pipe insulation protecting industrial water systems from temperature spikes.
Precision extruded tube structure, designed for low thermal dissipation in hot water networks.
Heavy-duty HVAC/R piping insulation, minimizing thermal loss on chilled lines.
Multi-layer system engineered for underground chilled and hot water transportation lines.
Designed for liquefied gas transport systems and extreme low-temperature cryogenic networks.
High density cryogenic barrier, minimizing cracking risks under sub-zero conditions.
Advanced cryogenic system minimizing risk of stress-corrosion cracking on stainless pipes.
High density basalt rock slabs for fire compartments, acoustic structures, and industrial ovens.
Flexible high-temperature rock wool blanket with wire mesh, designed for power plant boilers.
Heavy-duty 25mm thickness sheet roll designed for extreme noise-suppression and massive HVAC ducts in Lahore.
Explore Details
Versatile 19mm thickness profile providing excellent thermal protection for large processing vessels.
Explore Details
Factory-direct bulk packaging of 25mm density sheets suitable for local commercial project builders.
Explore Details
Standard general purpose elastomeric foam sheets serving industrial zones in Faisalabad.
Explore Details
Ultra-thin 6mm sound dampening sheets optimized for ceiling spaces and tight structural cavities.
Explore Details
Designed specifically for mechanical room walls to absorb high frequency sound waves.
Explore Details
1/4" internal diameter elastomeric piping insulation, tailored for small-bore split AC refrigerant lines.
Explore Details
Premium 40mm thick sheet insulation, offering top thermal and energy-conservation ratings.
Explore Details

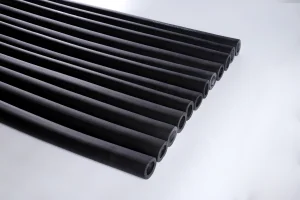

Standard 3/4" wall thickness piping insulation ensuring low heat gain.
View Details
Engineered for cold storage lines and refrigeration unit networks.
View Details
Excellent sound transmission loss performance in industrial pipes.
View Details
10mm thickness open-cell profile for interior acoustical damping panels.
View DetailsConnect with our international engineering team. We supply direct container shipping solutions to Karachi Port, Port Qasim, and provide full customs and compliance clearance documentation.
