Kingflex
Kingflex

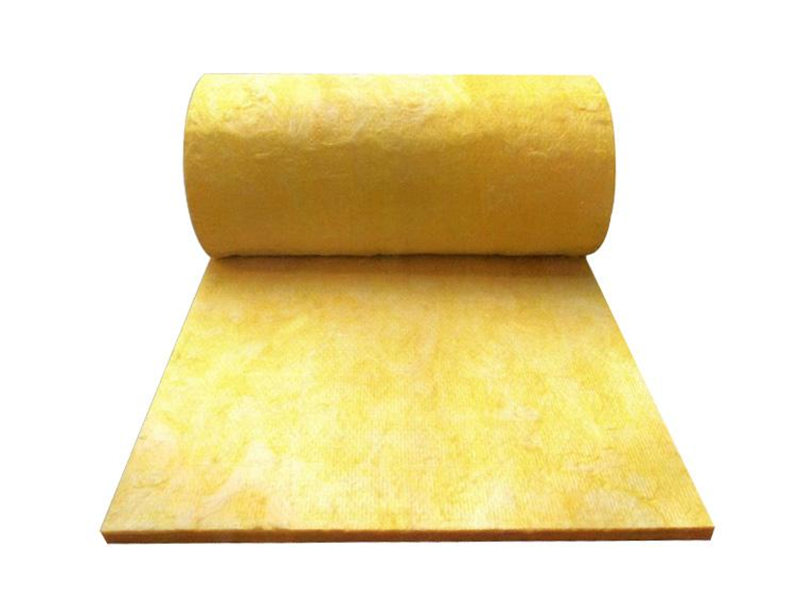

Glass Wool Insulation blanket is non combustible, thermal and acoustic insulation. There is no emission of toxic gases when exposed to fire and thus is one of the most eco-friendly options in insulation of entire building services.
| Technical Data | |||
|---|---|---|---|
| Item | Unit | Index | Standard |
| Density | kg/m3 | 10-48 | GB/T 5480.3 |
| Average fiber dia | μm | 5-8 | GB/T 5480.4 |
| Water content | % | ≤1 | GB/T 16400-2003 |
| Grade of combustibility | - | Non-combustible GradeA | GB 8624-1997 |
| Reshrinking temp | ℃ | 250-400 | GB/T 11835-2007 |
| Thermal conductibility | w/m·k | 0.034-0.06 | GB/T 10294 |
| Hydrophobicity | % | ≥98 | GB/T 10299 |
| Moisture rate | % | ≤5 | GB/T 5480.7 |
| Sound absorption coefficient | - | 1.03 product reverberation method 24kg/m3 2000HZ | GBJ47-83 |
| Slag inclusion content | % | ≤0.3 | GB/T 5480.5 |
Aluminum foil facing glass wool insulation blanket will be available, too. Aluminum foil facing glass wool blanket is to meet the market demand for high standards of green and environmental protection building materials, and avoid the harm of formaldehyde, phenol and other harmful substances on human body and environment. Moreover, aluminum foil glass wool blanket can maintain good thermal insulation performance no matter in high or low temperature environment.
| Specification and Dimension | ||||
|---|---|---|---|---|
| Product | Length (mm) | Width (mm) | Thickness (mm) | Density (kg/m3) |
| Glass wool Insulation blanket | 10000-20000 | 1200 | 30-150 | 12-48 |
Glass wool insulation blankets can be used for building roofs and HVAC systems. When it is used for roof insulation, it is not torn during application and does not suffer from reduced performance due to wastage. It easily adapts to any type of wood and metal roof. Also, due to its light weight, it can easily be transported to the roof and applied via manual cutting. The material is completely durable against acidity and decreases building fuel consumption significantly.
When used for HVAC systems, the glass wool blankets are typically covered on one side with vapor-impermeable aluminium foil. It acts as both sound isolation and thermal isolation with its vibration-conserving features. The aluminium foil coating used for air conditioning blankets has the highest resistance to vapor permeability. Especially in cooling systems, this coating is highly critical to prevent the degradation of insulation over time. It allows easy and fast application using self-adhesive maintenance pins.
Overall, glass wool insulation blankets are ideal for the thermal and acoustic insulation of air conditioning pipes, solar energy systems, roofs, and HVAC duct systems.
The glass wool insulation blanket is Category A non-combustible. It does not emit toxic gases when exposed to fire, making it a safe choice for building services.
The material is highly hydrophobic (≥98% hydrophobicity rate) and maintains its dimensional stability under heat and humidity. It does not decay, get moldy, or oxidize over time.
Yes, it is designed to easily adapt to any type of wood and metal roof structure. Its high tensile strength prevents tearing during installation.
The aluminium foil facing provides high resistance to vapor permeability. This prevents moisture infiltration, which is critical for protecting the insulation core from degrading in cooling systems.
Yes, it features a high sound absorption coefficient (1.03 reverberation method at 24kg/m3) and offers dual acoustic and thermal isolation alongside vibration reduction.
