| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10⁻¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | - | ||
| ≤0.036 (40°C) | - | ||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 & Part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO 4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | % | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |

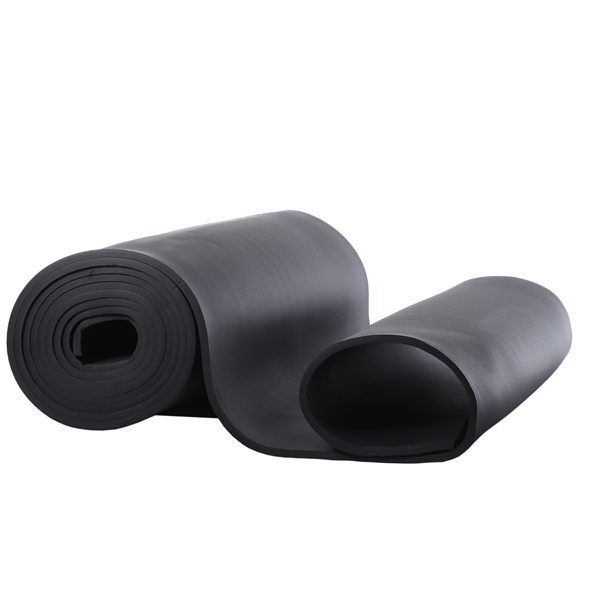

Our insulation rolls come in thicknesses ranging from 1/4" (6mm) to 2" (50mm). Standard roll widths available are 1m, 1.2m, and 1.5m, with total area coverage per roll adjusted depending on the thickness configuration.
This material features a safe temperature operating range from -50°C up to 110°C, tested in compliance with the GB/T 17794-1999 standard.
The insulation achieves a Class 0 & Class 1 Fire Rating according to BS 476 Part 6 and Part 7 tests. It also meets a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
Yes, the material exhibits excellent water resistance with a water vapor permeability of ≤0.91×10⁻¹³ Kg/(m.s.pa) (DIN 52 615 / BS 4370) and water absorption of 20% by volume (ASTM C 209), which successfully maintains the thermal conductivity over time.
Absolutely. It features a high-grade, clean, and generous appearance, making it highly suitable for visible installations in supermarkets, exhibition centers, stadiums, and workshops where ceilings are not installed.
The material offers excellent resistance to environmental factors, scoring "Good" under standardized tests for fungi resistance (ASTM 21), ozone resistance (GB/T 7762-1987), and U.V./weathering resistance (ASTM G23).
