China Kingflex Rubber Foam Sheet Roll Supplier, Pricelist

1 / 1

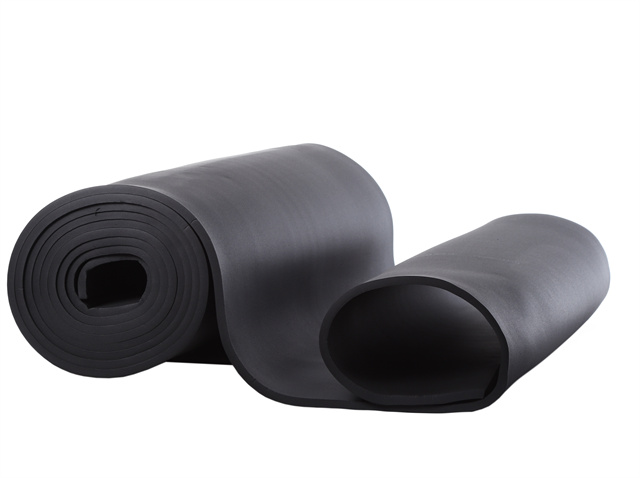

China Kingflex Rubber Foam Sheet Roll Supplier, Pricelist

Rubber foam insulation sheet are soft heat insulating, heat preservation and energy conservation materials made with advanced technology at home and abroad and advanced full automatic continuous production line imported from abroad, and through development and improvement by ourselves, using butyronitrile rubber and polyvinyl chloride (NBR, PVC) with performance as main raw materials and other high quality auxiliary materials through foaming special procedure and so on.

Send Inquiry

Product Description

Excellent thermal insulation - very low thermal conductivity

Excellent acoustic insulation - can reduce noise and sound transmitting

Moisture resistant, fire resistant

Good strength to resist deformation

Closed cell structure

Dimensions Table

Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size (L*W)	㎡/Roll	Size (L*W)	㎡/Roll	Size (L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Rubber Insulation Sheet is an environmental protection insulation material with closed cell structure. It is also formaldehyde free, low VOCS, fiber free, dust free and resistant to mold and mildew.

Technical Data

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C) ≤0.032 (0°C) ≤0.036 (40°C)	ASTM C 518
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance	-	Good	GB/T 7762-1987
Resistance to U.V. and weather	-	Good	ASTM G23

Frequently Asked Questions (FAQ)

What are the main advantages of using closed cell rubber insulation sheets?

Closed cell rubber insulation sheets provide excellent thermal and acoustic insulation. The closed cell structure prevents moisture penetration, exhibits outstanding flame resistance, resists deformation under pressure, and has extremely low thermal conductivity.

Is this insulation material environmentally friendly and safe for indoor use?

Yes, this rubber insulation sheet is designed with environmental safety in mind. It is completely formaldehyde-free, fiber-free, dust-free, and has low VOCs (volatile organic compounds), making it highly resistant to mold and mildew growth.

What temperature range can this rubber insulation sheet withstand?

The product performs efficiently within a service temperature range of -50°C to 110°C, conforming to testing standard GB/T 17794-1999.

What are the fire safety ratings of this material?

This material has been certified for fire performance, achieving Class 0 & Class 1 ratings based on BS 476 Part 6 and Part 7 tests. It also has a low Flame Spread and Smoke Developed Index of 25/50 according to ASTM E 84.

What sizes and thicknesses are available for the insulation sheets?

The sheets are available in thicknesses from 1/4" (6mm) up to 2" (50mm). Standard widths are 1m, 1.2m, and 1.5m, with varying lengths to optimize coverage area per roll.
