Kingflex
Kingflex

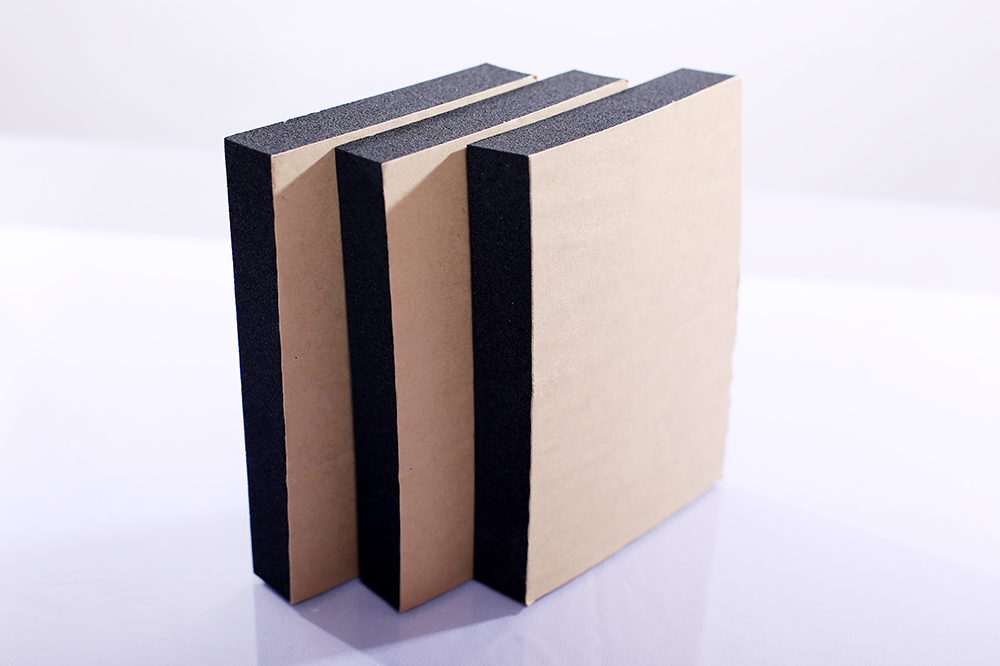

Premium Rubber Foam Sheet with Self-Adhesive is widely used in electrical cabinets, cars, speakers, toys, handicrafts, sports equipment, etc. The adhesive foam pads are made from high-quality neoprene closed-cell foam. Resistant to high and low temperatures, can be used from -50℃ to 110℃.
| Rubber Foam Sheet Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
Premium Rubber Foam Roll with Self-Adhesive has good adhesion: The adhesive foam sheet has a strong adhesive backing, waterproof and non-degumming, and sticks firmly, is an ideal solution for gaskets and insulation projects. The neoprene foam rubber pad can be easily cut into different shapes and sizes. Just use scissors to trim it to a perfect fit.
| Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406,ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |
What temperature range can this self-adhesive rubber foam sheet withstand?
The adhesive foam pads are highly resistant to extreme temperatures, operating efficiently in a wide range from -50℃ up to 110℃, making them suitable for both freezing cold and high-heat environments.
Is the self-adhesive backing reliable for long-term use?
Yes, it features a strong, waterproof, and non-degumming self-adhesive backing that adheres firmly to surfaces, providing a durable solution for gaskets and insulation projects.
Can I easily cut the foam pad to fit specific dimensions?
Absolutely. The premium neoprene closed-cell foam material is flexible and can be easily trimmed or cut into different shapes and sizes using common scissors.
What are the main fire rating specifications of this rubber foam?
The material meets Class 0 & Class 1 fire rating standards according to BS 476 Part 6 & Part 7 test standards. It has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
What are the primary applications for this product?
This self-adhesive rubber foam sheet is highly versatile and widely applied in electrical cabinets, automotive installations, speaker systems, sports equipment, handicrafts, toys, dustproofing, thermal insulation, and sound-absorbing structures.
