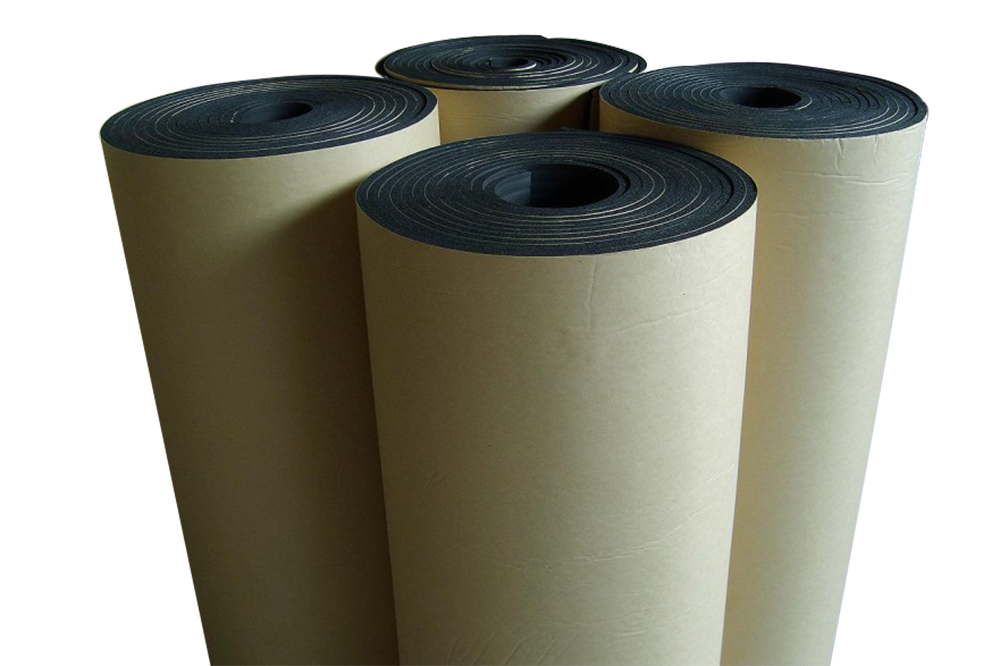

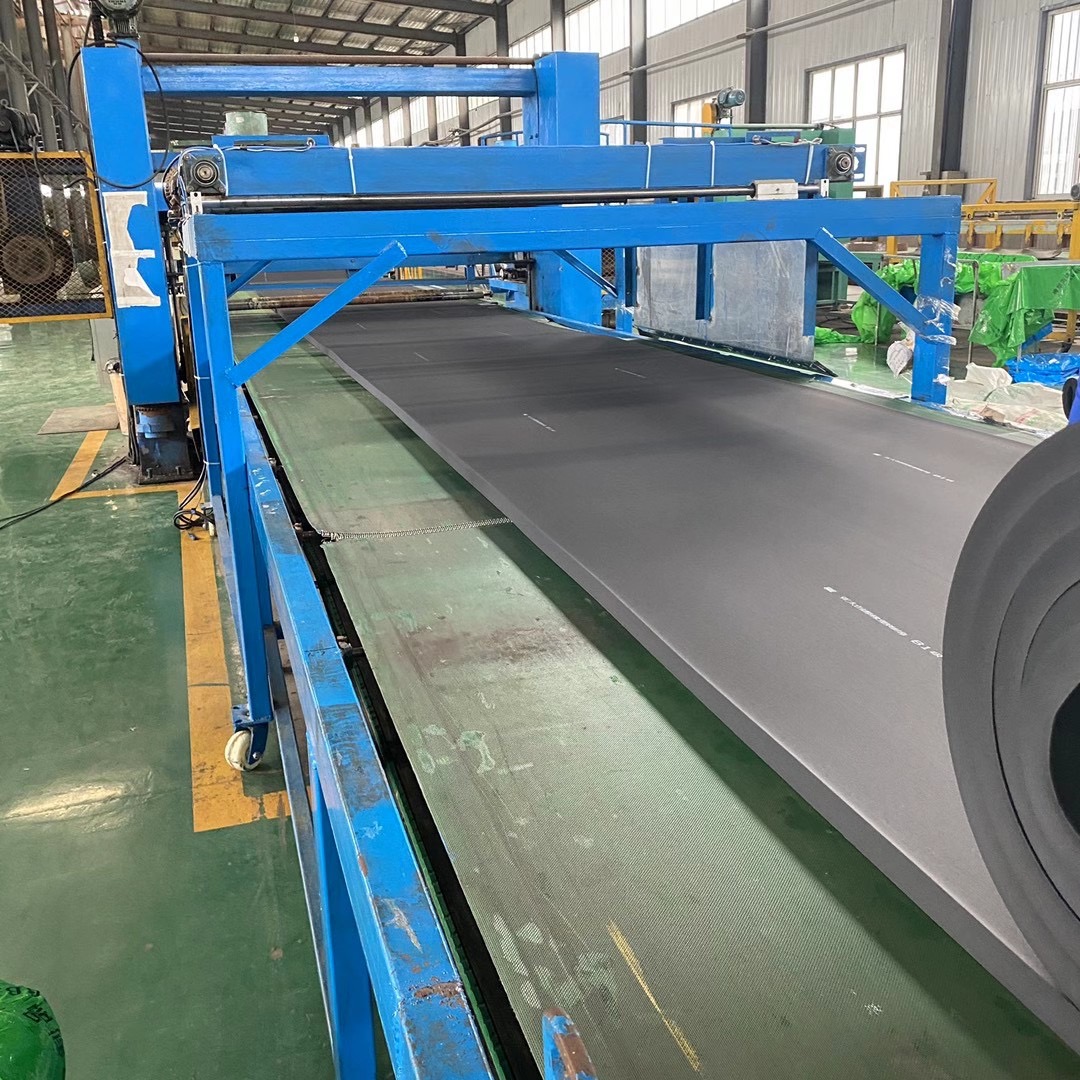

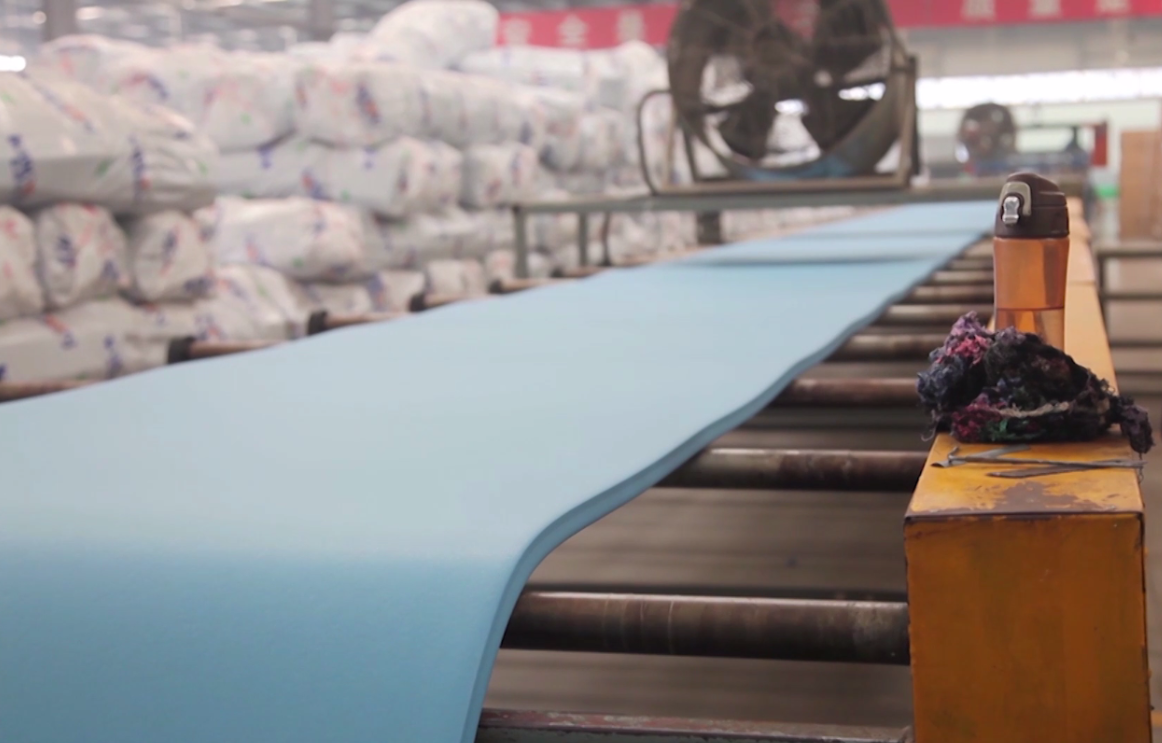

Rubber foam thermal insulation materials are produced by the cutting-edge technology introduced from abroad and the automatic production line, with nitrile rubber and polyvinyl chloride in excellent performances as the main materials and via special processes of sulfuration, foaming, etc.
| Dimension Specifications |
| Thickness |
Width 1m |
Width 1.2m |
Width 1.5m |
| Inches |
mm |
Size(L*W) |
㎡/Roll |
Size(L*W) |
㎡/Roll |
Size(L*W) |
㎡/Roll |
| 1/4" |
6 |
30 × 1 |
30 |
30 × 1.2 |
36 |
30 × 1.5 |
45 |
| 3/8" |
10 |
20 × 1 |
20 |
20 × 1.2 |
24 |
20 × 1.5 |
30 |
| 1/2" |
13 |
15 × 1 |
15 |
15 × 1.2 |
18 |
15 × 1.5 |
22.5 |
| 3/4" |
19 |
10 × 1 |
10 |
10 × 1.2 |
12 |
10 × 1.5 |
15 |
| 1" |
25 |
8 × 1 |
8 |
8 × 1.2 |
9.6 |
8 × 1.5 |
12 |
| 1 1/4" |
32 |
6 × 1 |
6 |
6 × 1.2 |
7.2 |
6 × 1.5 |
9 |
| 1 1/2" |
40 |
5 × 1 |
5 |
5 × 1.2 |
6 |
5 × 1.5 |
7.5 |
| 2" |
50 |
4 × 1 |
4 |
4 × 1.2 |
4.8 |
4 × 1.5 |
6 |
-
🛡️
1. The product is inflammable and has high safety performance.
-
🌀
2. Flexible material, suitable for various shapes and easy installation.
-
💧
3. The closed cell structure prevents the penetration of water vapor and prolongs the service life.
| Technical Data |
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406,ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |
Frequently Asked Questions
What are the main raw materials used in this thermal insulation?
The material is produced from high-performance nitrile rubber (NBR) and polyvinyl chloride (PVC) as the main ingredients, manufactured via advanced sulfuration and foaming processes.
What is the safe operating temperature range for this insulation?
This rubber foam thermal insulation has an effective operating temperature range of -50°C to 110°C, tested in compliance with the GB/T 17794-1999 standard.
How does the closed-cell structure benefit the application?
The closed-cell structure creates a highly effective built-in barrier that prevents water vapor penetration. This keeps the material dry and significantly prolongs the service lifespan of the system.
What fire ratings does the insulation material achieve?
The insulation meets Class 0 and Class 1 standards according to BS 476 Part 6 & Part 7, offering excellent flame retardancy and high safety performance.
What roll dimensions and thicknesses are available?
Standard thicknesses range from 1/4" (6mm) up to 2" (50mm). Standard roll widths are available in 1m, 1.2m, and 1.5m to suit different engineering installation requirements.
